| Brand Name: | KINCOTO |
| Model Number: | KA42-5000E |
| MOQ: | 1 |
| Price: | 15000USD / pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
1.Support IC incoming materials to be packaged in tape, enabling tape in and out, and automatically packaged after programming is completed.
2.Capacity 6500UPH, 8 programming stations. Customize 1-8 programming stations to start, automatically distinguish OK and NG.
3.High picking and placing accuracy, simple operation and easy to use.
4.The programming plan can be stored, accessed for programming at any time, and the corresponding programming socket can be replaced by different packages.
5.Equipped with real-time monitoring and automatic fault alarm, ensuring stable and efficient production.
6.Compact and reasonable structure, small occupation space, easy for installation and movement.
7.Adopt stable transmission system, low noise, long service life and high durability.

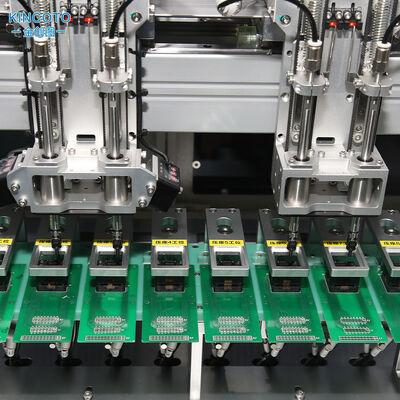

It can accommodate four programming sockets (the size of the programming sockets depends on the chip size). When replacing chips with different packages, for chips of the same brand, only the socket size needs to be changed. For different brands, only the programmer and programming socket need to be changed, which is simple and convenient.
A dot function can be added when the tape is woven out.(Red, blue, yellow, green, orange)
| Output efficiency | 6500UPH |
| Overall size | 1150*1080*1450mm |
| Supports ic packaging | QFN/SOP/SSOP/TSSOP/SON/QFP...... |
| Programmming station | 8 stations |
| pick-and-place device | 4 vacuum nozzles |
| Monitor | 7"LCD |
| Control mode | PLC |
| X-axis | Linear motor |
| programming mode | Lower preassure socket |
| Feeding device | Standard 12-16mm optional 8-32mm feeder |
| Input voltage | AC220/50HZ |
| Power | 0.25KW |
| Total weight | 255kg |
