| Brand Name: | Kincoto |
| Model Number: | KR82-2500HPM |
| MOQ: | 1 |
| Price: | 24300 |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
It's very convenient to program chips of different packages.
A dot function can be added when the tape is woven out.(Red, blue, yellow, green, orange)
| output efficiency | 2500UPH |
| Overall size | 1200*730*1450mm |

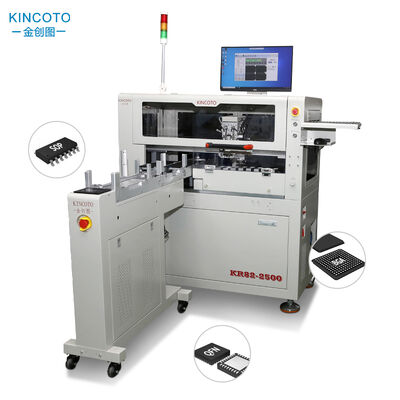

| Supports ic packaging | QFP/QFN/SOP/BGA.... |

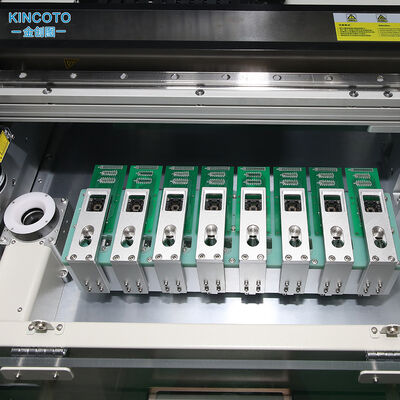

| Programmming station | 8 stations |

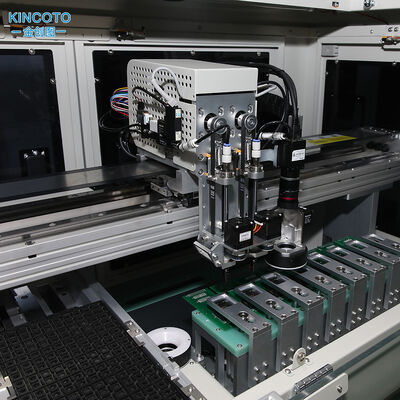

| pick-and-place device | 2 vacuum nozzles |
| Monitor | 7"LCD |
| Pick and place accuracy | 0.03mm |
| Control mode | Motion contral card |
| X-axis | Linear motor |
| programming mode | Lower preassure socket |

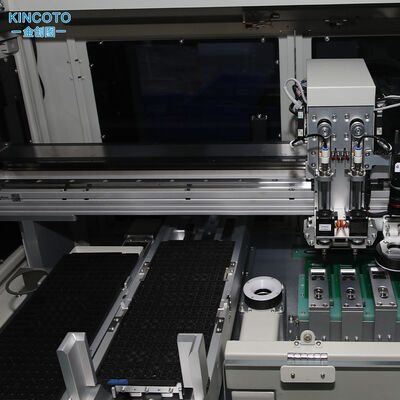

| Feeding device | Standard 12-16mm optional 8-32mm feeder |
| Input voltage | AC220/50HZ |
| power | 0.25kw |
| Toal weight | 352kg |
