| Brand Name: | KINCOTO |
| Model Number: | KA3000-GS6 |
| MOQ: | 1 pcs |
| Price: | 65000USD/pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |

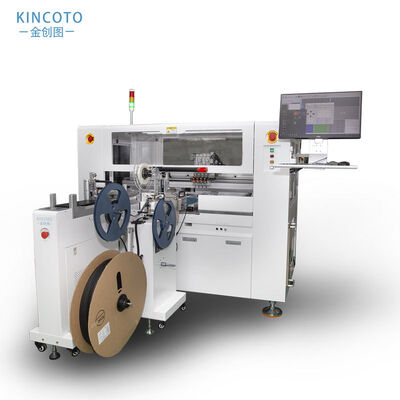

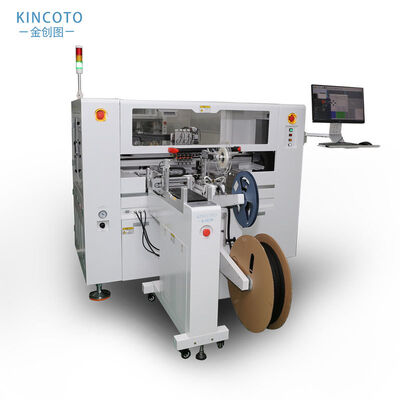

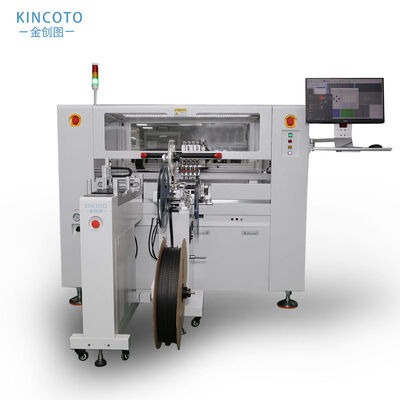

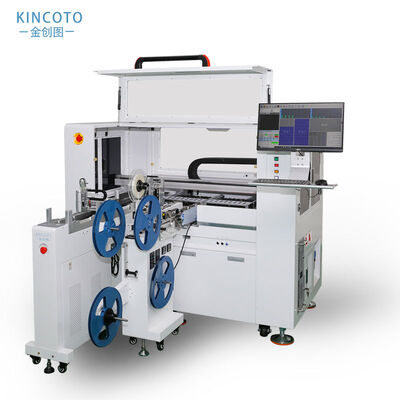

1.MES system docking,supporting IC incoming packaging tapes,trays,and fully automatic loading. Six modes,Interchangeable between tray, tape, and tube packaging, with tube input only.
2.Equipped with a universal programmer (supports SPIFLASH/EPROM/M+CU/MPU/EMMC/PLCC...)
3.It can activate 1-96 programming channels and support large capacity programming files.
4.The plug-in programming socket is convenient and simple.Different programming sockets can be inserted in advence according to needs,which is flexible and saves time in changing the programming socket.
5.Equipped with a high-precision digital camera to correct the position of each IC pick and place to avoid secondary damage to the chip pins.
6.Optional dotting function, alimeter , and AOI detection.

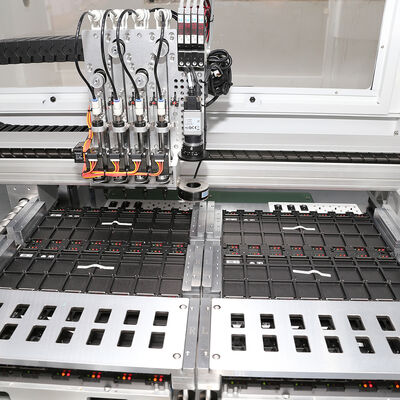

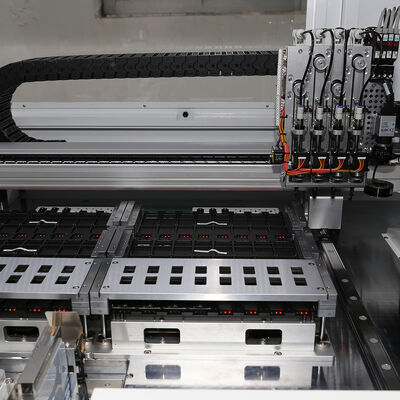

It can accommodate 1-96 programming sockets (the size of the programming sockets depends on the chip size). When replacing chips with different packages, for chips of the same brand, only the socket size needs to be changed. For different brands, only the programmer and programming socket need to be changed, which is simple and convenient.
A dot function can be added when the tape is woven out.(Red, blue, yellow, green, orange)
| Output efficiency | 3000-3500UPH |
| Overall size | 2220*2000*1580mm |
| Support IC packaging | QFN,SOP,QFP,SSOP,TSSOP...... |
| Programming station | 48-96 stations |
| Pick-and-place device | 4 vacuum nozzles |
| Control mode | Motion control card |
| X-axis | Linear motor |
| Programming mode | Lower pressure socket |
| Positioning system | CCD vision inspection |
| Tray loading and unloading | Automatic tray feeding device,up to 20 trays |
| Tape feed | Standard 12-16MM optional 8-32MM |
| Power | 1.3KW |
| Air source | 0.2-0.6MPA |
| Total weight | 950KG |
