| Brand Name: | Kincoto |

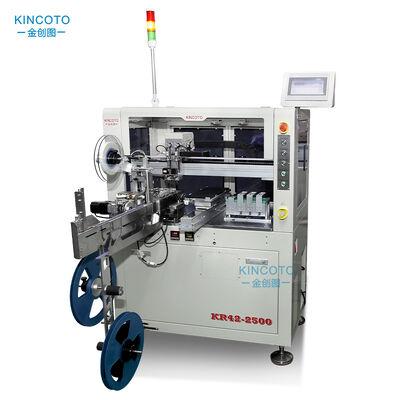

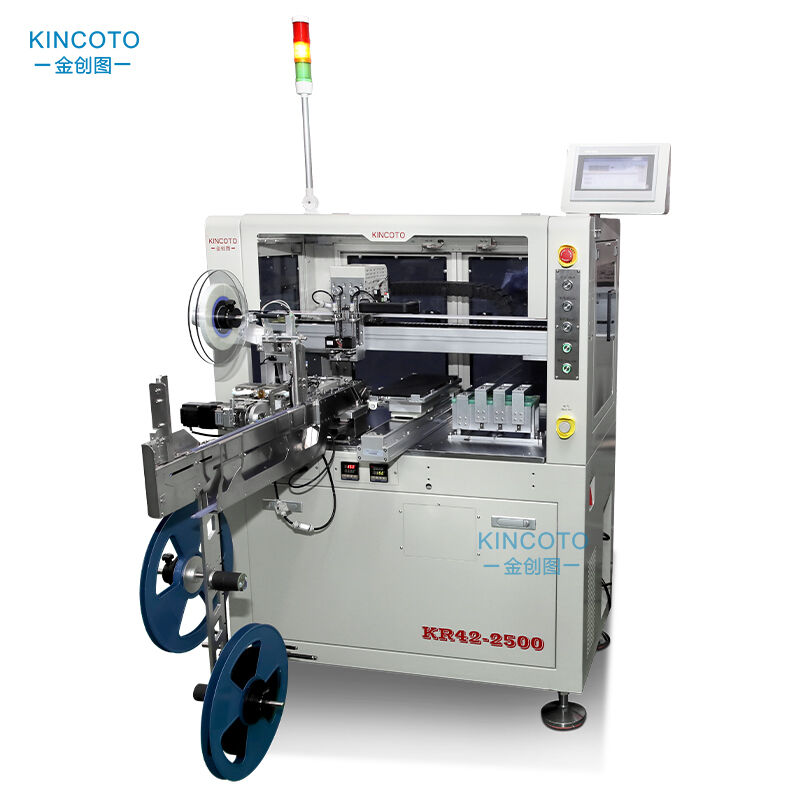

| Model Number: | KR42-2500-RUA |
| MOQ: | 1 |
| Price: | 23800 |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
1.Support IC incoming packaging as tape and tray (manual loading) and tube4 programming stations, 1-4 programming stations can be customized to start.
2.Record the quantity of OK and NG, the operation is simple and convenient, and easy to use.
3.Support six methods: tape in and tray out, tray in and tape out, tape in and tape out,tray in and tray out,tube in and tray out,tube in and tape out.
It supports a wide range of chip packages, including QFN, SOP, BGA and QFP.
It's very convenient to program chips of different packages.
Technical Specifications
| output efficiency | 2500UPH |
| Overall size | 1000*580*1450mm |
| Supports ic packaging | QFP/QFN/SOP/SSOP/TSSOP.... |

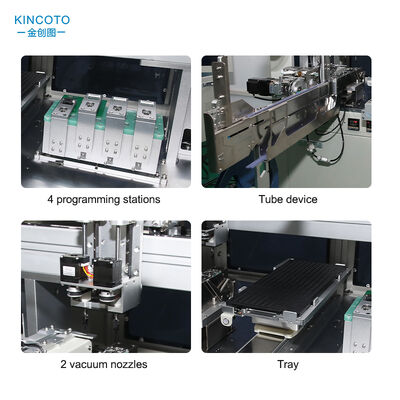

| Programmming station | 4 stations |
| pick-and-place device | 2 vacuum nozzles |
| Monitor | 7"LCD |
| Pick and place accuracy | 0.03mm |
| Control mode | Motion contral card |
| X-axis | Linear motor |
| programming mode | Lower preassure socket |
| Feeding device | Standard 12-16mm optional 8-32mm feeder |
| power | 0.3kw |
