| Brand Name: | KINCOTO |
| Model Number: | KR42-2500-RUA |
| MOQ: | 1 pcs |
| Price: | 26000USD |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
1.Support IC incoming packaging as tape and tray (manual loading) and tube.

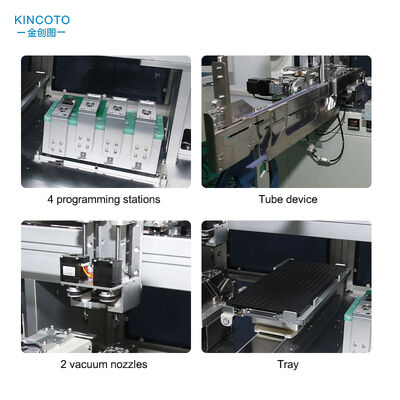

2.4 programming stations,1-4 programming stations can be customized to start.
3.Record the quantity of OK and NG,the operation is simple and convenient, and easy to use.
4.Support six methods: tape in and tray out,tray in and tape out, tape in and tape out, tray in and tray out.
It can accommodate four programming sockets (the size of the programming sockets depends on the chip size). When replacing chips with different packages, for chips of the same brand, only the socket size needs to be changed. For different brands, only the programmer and programming socket need to be changed, which is simple and convenient.
It can accommodate four programming sockets (the size of the programming sockets depends on the chip size). When replacing chips with different packages, for chips of the same brand, only the socket size needs to be changed. For different brands, only the programmer and programming socket need to be changed, which is simple and convenient.
| Parameter | Value |
|---|---|
| Output efficiency | 2500UPH |
| Overall size | 1000*1080*1450MM |
| Support IC packaging | QFP/QFN/SOP/TSSOP/SSOP...... |
| Programming station | 4 stations |
| Pick-and-place device | 2 vacuum nozzles |
| Control mode | Motion control card |
| X-axis | Linear motor |
| Programming mode | Lower pressure socket |
| Feeding device | Standard 12-16MM optional 8-32MM Feeder |
| Input voltage | AC220/50HZ |
| Power | 0.3KW |
| Total weight | 300KG |
