| Brand Name: | KINCOTO |
| Model Number: | KA82-2500F |
| MOQ: | 1 pcs |
| Price: | 21000USD |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
1.Support IC incoming packaging as tape.

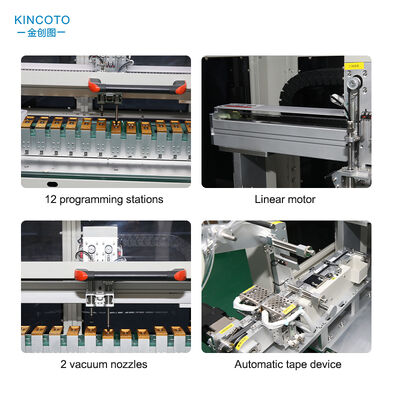

2.12 programming stations, 1-12 programming stations can be customized to start.
3.Record the quantity of OK and NG, the operation is simple and convenient, and easy to use.
4.Adopt stable transmission structure, ensuring smooth and reliable operation.
5.Support automatic feeding and receiving, realizing fully automatic production.
It's very convenient to program to different packages.
It can accommodate twelve programming sockets (the size of the programming sockets depends on the chip size). When replacing chips with different packages, for chips of the same brand, only the socket size needs to be changed. For different brands, only the programmer and programming socket need to be changed, which is simple and convenient.
A dot function can be added when the tape is woven out.(Red, blue, yellow, green, orange)
Parameter
| Output efficiency | 2500UPH |
| Overall size | 1600*1100*1600MM |
| Supports IC packaging | QFP/QFN/SOP/SSOP/TSSOP...... |
| Programming station | 12 stations |
| Pick-and-place device | 2 vacuum nozzles |
| Control mode | PLC |
| Programming mode | Lower pressure socket |
| X-axis | Linear motor |
| Feeding device | Standard 12-16MM optional 8-32MM feeder |
| Discharging device | Adjustable automatic hot pressing film sealing device |
| Input voltage | AC220/50HZ |
| Power | 0.3KW |
| Air source | 0.4-0.6MPA |
| Total weight | 310KG |
