| Brand Name: | KINCOTO |
| Model Number: | KR82-2500H |
| MOQ: | 1 pcs |
| Price: | 20000USD / pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |

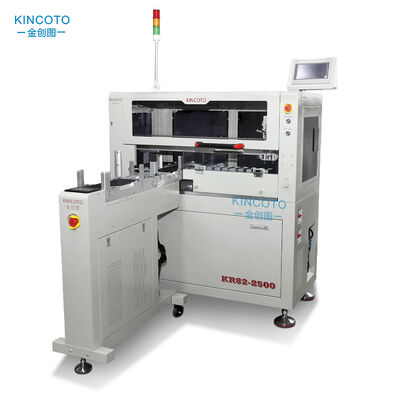

1.Support IC incoming material packaging into trays,automatic tray feeding can support 20 trays.
2.Support offline programmer

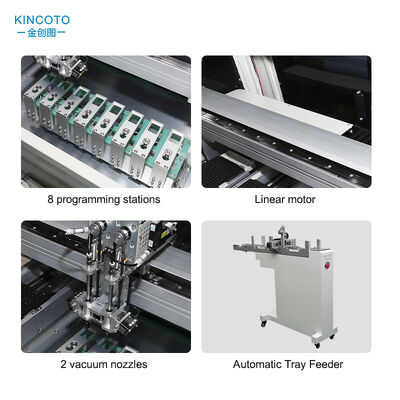

3.Eight programming stations,1-8 programming stations can be customized to start.
4.Optional dotting function,simple and convenient operation,easy to use.
It's very convenient to program to different packages.
It can accommodate eight programming sockets (the size of the programming sockets depends on the chip size). When replacing chips with different packages, for chips of the same brand, only the socket size needs to be changed. For different brands, only the programmer and programming socket need to be changed, which is simple and convenient.
Chip for marking and dotting function
A dot function can be added when the tape is woven out.(Red, blue, yellow, green, orange)
Parameter
| Output efficiency | 2500UPH |
| Overall size | 1200*1520*1450MM |
| Support IC packaging | QFN,SOP,QFP,SSOP,TSSOP,SON..... |
| Programming station | 8 stations |
| Pick-and-place device | 2 vacuum nozzles |
| Control mode | Motion control card |
| X-axis | Linear motor |
| Programming mode | Lower pressure socket |
| Tray | One set of automatic trays |
| Input voltage | AC220/50HZ |
| Power | 0.25KW |
| Air source | 0.4-0.6MPA |
| Total weight | 426KG |
