| Brand Name: | KINCOTO |
| Model Number: | 1213D |
| MOQ: | 1 pcs |
| Price: | 3600USD / pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |

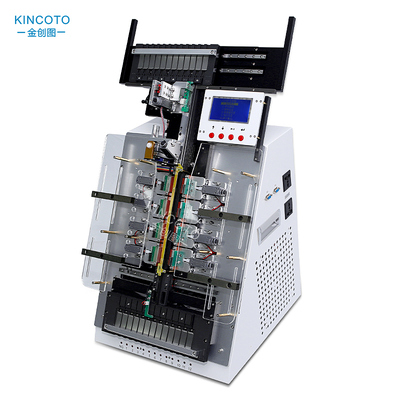

1.Auto sorting function: Classify ICs into OK/NG and deliver to respective tubes automatically during programming.
2.Flexible tube loading: Freely set IC quantity for each tube to match diverse packaging standards.
3.Power-off data retention: Built-in counting system records qualified & defective products, data will not be lost after power cut.
4.Wide compatibility: Works well with standard offline programmers and custom-developed programmers.
5.Energy-saving design: Operates solely by electricity, no pneumatic air source needed.
6.User-friendly operation: Simple parameter setup, adaptable to most tube-type IC packages.
7.Reliable performance: Compact layout, stable operation, low noise and extended service lifespan.
Parameter
| Output efficiency | 3000UPH |
| Host size | 460*410*730MM |
| Support IC packaging | SOP150(ssop150)/SOP210(ssop210)/SOP300/DIP300...... |

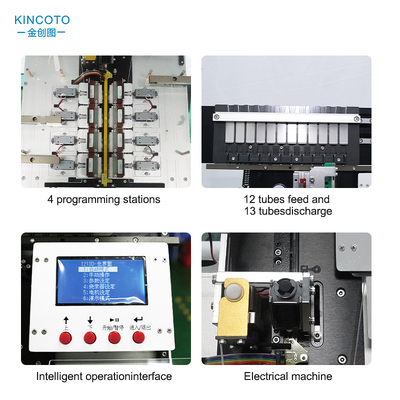

| Programming station | 4 stations(probe) |
| Air humidity | 10-95%(no condensation) |
| Feeding mode | Automatic receiving 12 tubes |
| Receiving method | Automatic receiving 13 tubes,of which 1 tube NG |
| Operation interface | LCD |
| Programming mode | Embedded control panel |
| Input voltage | AC220/50HZ |
| Power | 0.18KW |
| Total weight | 26KG |
