1213D – Automatic Tube IC Programming Machine (Dedicated & Cost-Effective)

Product Description

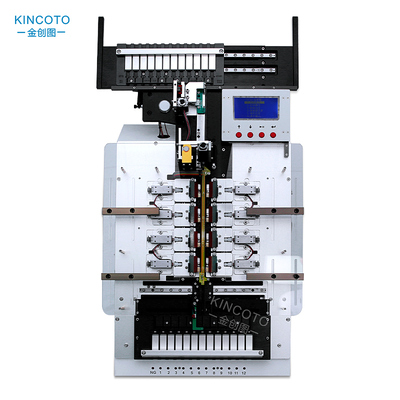

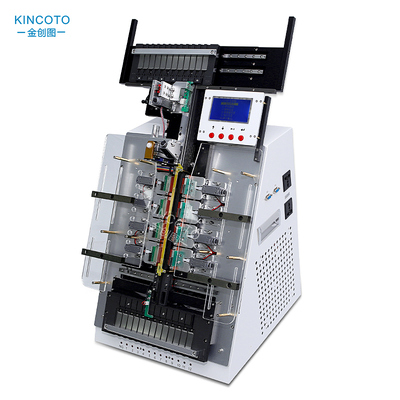

The 1213D is an automatic tube IC programming machine specifically designed for tube-in, tube-out operations. It offers a dedicated, cost-effective solution for companies that need high-volume programming of a single chip package without the complexity or cost of larger universal systems.

This model features 4 programming stations (probe-type sockets), automatic tube feeding (12 tubes input), and automatic tube sorting (13 tubes output – 12 OK + 1 NG). With a maximum output of 3000 UPH, it significantly improves programming efficiency while reducing manual labor.

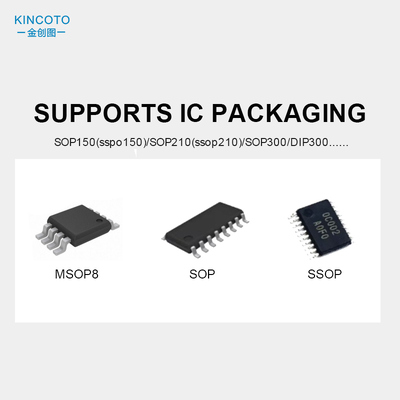

Key differentiator: Unlike large universal programmers, the 1213D is a dedicated machine – it is optimized for one specific chip package (e.g., SOP150, SOP210, SOP300, or DIP300). This focus delivers maximum throughput at the lowest cost per chip, making it the ideal choice for high-volume, single-package production lines.

The 1213D requires no air compressor – just plug into a standard AC220V outlet and run. Its compact desktop size (460×410×730mm) and lightweight design (only 26KG) allow it to fit anywhere in your production facility.

Key Features & Technical Specifications

Detailed Functional Highlights

1. Dedicated Machine – Optimized for One Package

The 1213D is designed as a dedicated machine for a single chip package (e.g., SOP150 only). This focus delivers:

• ✅ Maximum throughput – up to 3000 UPH

• ✅ Lowest cost per chip – no unnecessary features

• ✅ Simple operation – load tubes, press start, collect programmed tubes

• ✅ Perfect for high-volume, single-package production

If you need to program a different package (e.g., switch from SOP150 to SOP210), you will need a separate 1213D configured for that package.

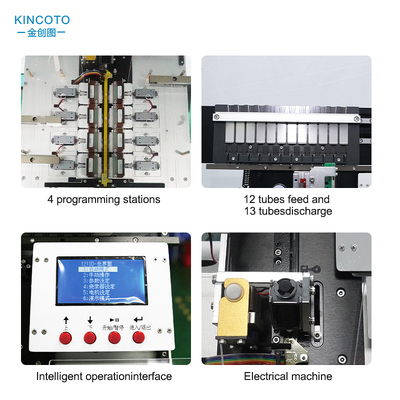

2. Fully Automatic Tube In / Tube Out

• Input: Load up to 12 tubes of blank chips at once

• Programming: 4 stations parallel burning

• Output: Automatically sorts into 13 tubes – 12 OK tubes + 1 NG tube

• Result: Continuous, unattended operation

3. No Air Compressor Required – Plug & Play

Unlike many automatic programmers, the 1213D runs on electricity only:

• ✅ No air compressor needed

• ✅ No air hose installation

• ✅ No ongoing air maintenance

• ✅ Just plug into AC220V and run

This makes the 1213D perfect for small factories, labs, and R&D departments that do not have facility air lines.

4. 4 Probe-Type Programming Stations

• 4 independent programming stations with probe-type sockets

• Probe contacts ensure reliable electrical connection

• Sockets are easy to replace when probes wear out

• Each station can be enabled/disabled independently

5. High Efficiency – 3000 UPH

With 4 parallel stations and optimized tube handling, the 1213D delivers:

• Up to 3000 chips per hour (depending on chip and programmer)

• Significantly faster than manual programming (1-2 chips per minute)

• One operator can run multiple machines

6. Wide Programmer Compatibility

The 1213D works with most mainstream offline programmers:

7. Compact & Lightweight Desktop Design

8. Simple Operation – LCD Control

• LCD interface for easy setup

• Set tube quantity, programming parameters, and sorting options

• Real-time status display

• No special training required

9. Low Maintenance

• Probe-type sockets are consumables – replace when worn

• No air system means no air filters, dryers, or regulators to maintain

• Clear video tutorials and documentation provided

10. Reliable NG Sorting

• Automatically detects programming failures

• Failed chips go to dedicated NG tube (1 tube)

• Good chips go to 12 OK tubes

• No manual sorting required

Signal Interface & Programmer Integration

The 1213D is designed to work with your existing offline programmers. The standard signal interface allows communication between the machine and the programmer for:

• Start signal trigger

• Stop signal control

• OK/NG judgment feedback

• Programming status monitoring

Compatibility: The 1213D works with most standard offline programmers from major brands (SinoMCU, Holychip, Sonix, ELAN, Holtek, PADAUK, Hyundai, etc.). Please contact us to verify compatibility with your specific programmer model.

After-Sales Service (1 Year Warranty)

• Free repair or replacement for quality-related issues within 1 year

• Technical support during operation (remote assistance available)

• Consultation services for product usage, maintenance, and optimization
