| Brand Name: | Kincoto |
| Model Number: | KA42-5000 |
| MOQ: | 1 |
| Price: | 14502 |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
It can accommodate four programming sockets (the size of the programming sockets depends on the chip package).
When replacing chips with different packages, for chips of the same brand, only the socket size needs to be changed. For different brands, only the programmer and programming socket need to be changed, which is simple and convenient.
Chip for marking and dotting function
A dot function can be added when the tape is woven out.(Red, blue, yellow, green, orange)
| output efficiency | 6500UPH |
| Overall size | 1150*1080*1450mm |

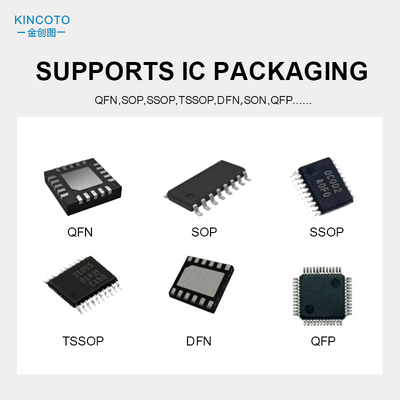

| Supports ic packaging | QFP/QFN/SOP/SSOP/TSSOP.... |
| Programmming station | 8 stations |
| pick-and-place device | 4 vacuum nozzles |
| Monitor | 7"LCD |
| Pick and place accuracy | 0.03mm |
| Control mode | PLC |
| X-axis | Linear motor |
| programming mode | Lower preassure socket |
| Feeding device | Standard 12-16mm optional 8-32mm feeder |
| Input voltage | AC220/50HZ |
| power | 0.25kw |
| Toal weight | 255kg |
