| Brand Name: | KINCOTO |
| Model Number: | KA42-5000 |
| MOQ: | 1 |
| Price: | 18000USD/set |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |

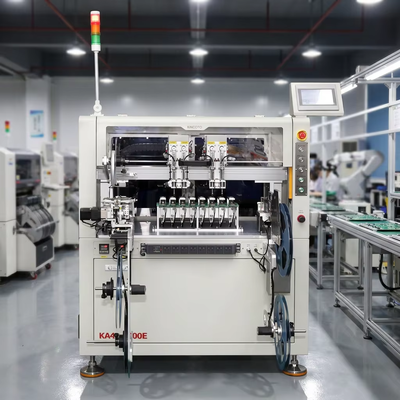

The KA42-5000 is a high‑speed automatic tape programming machine designed for tape in, tape out (reel to reel) mass production. Equipped with 8 programming stations, 4 vacuum nozzles, and a linear motor on the X‑axis, it delivers an outstanding 6500 UPH – making it one of the fastest tape programmers in its class.
This model supports a wide range of IC packages including QFN, SOP, SSOP, TSSOP, SON, and QFP. It features a standard feeder for 12‑16mm tape width (optional 8‑32mm available) and an automatic hot‑pressing sealing device for tape output.
With ±0.03mm placement accuracy, PLC control, and a 7" LCD touchscreen, the KA42-5000 offers both speed and precision. It is an ideal solution for high‑volume SMT lines, EMS companies, and IC solution providers that demand maximum throughput without compromising reliability.
| Target Customers |
| SMT assembly factories |
| IC solution providers |
| IC distributors / agents |
| Consumer electronics EMS |
| Automotive electronics Tier 2/3 |
| Industrial control manufacturers |
| Programming service centers |
| # | Selling Point |
|---|---|
| 1 | 6500 UPH Ultra‑High Speed – 8 parallel programming stations, 4 vacuum nozzles, designed for maximum throughput |
| 2 | ±0.03mm High Precision – Linear motor drive ensures accurate placement for fine‑pitch packages like QFP and QFN |
| 3 | Fully Automatic Tape In / Tape Out – Auto peeling, auto hot‑pressing sealing, reel‑to‑reel operation |
| 4 | Wide IC Package Support – Compatible with QFN, SOP, SSOP, TSSOP, SON, QFP, and more |
| 5 | Flexible Configuration – 1‑8 programming stations can be independently enabled; standard 12‑16mm feeder, optional 8‑32mm |
| 6 | User‑Friendly Operation – 7" LCD touchscreen, programmable settings can be stored and recalled anytime |
| 7 | Easy Maintenance – Down‑pressure sockets are replaceable; linear motor reduces wear and extends service life |
| 8 | Seamless Programmer Integration – Works with most offline programmers (signal interface ready) |
| Parameter | Value |
|---|---|
| Model | KA42-5000 |
| Output Efficiency | Up to 6500 UPH |
| Host Size (L×W×H) | 1150 × 580 × 1450 mm |
| Overall Size (L×W×H) | 1150 × 1080 × 1450 mm |
| Supported IC Packages | QFN, SOP, SSOP, TSSOP, SON, QFP, and more |
| Programming Stations | 8 stations (1‑8 independently selectable) |
| Pick & Place Device | 4 vacuum nozzles |
| Monitor | 7" LCD |
| Pick & Place Accuracy | ±0.03 mm |
| Control Mode | PLC |
| Programming Mode | Down‑pressure socket |
| X‑axis Drive | Linear motor |
| Feeding Device | Standard 12‑16mm, optional 8‑32mm Feeder |
| Discharging Device | Adjustable automatic hot‑pressing film sealing device |
| Input Voltage | AC220V / 50Hz |
| Power Consumption | 0.25 KW |
| Air Source | 0.4‑0.6 MPA |
| Total Weight | 255 KG |

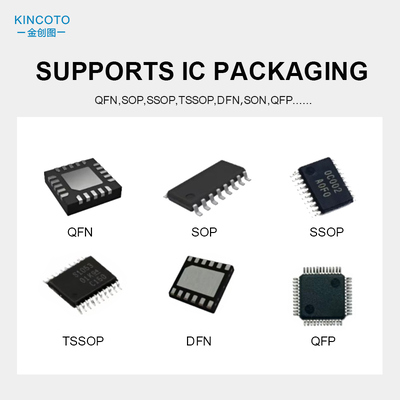

QFN (Quad Flat No‑lead)
SOP (Small Outline Package)
SSOP (Shrink Small Outline Package)
TSSOP (Thin Shrink Small Outline Package)
SON (Small Outline No‑lead)
QFP (Quad Flat Package)
Other packages available upon request
| 品牌英文名 | 中文名 |
|---|---|
| Sofi-tech | 硕飞科技 |
| SinoMCU | 上海晟矽微电子 |
| Holychip | 上海芯圣电子 |
| Holtek | 合泰半导体 |
| Sonix | 松翰科技 |
| Elan | 义隆电子 |
| Nyquest | 九齐科技 |
| PADAUK | 应广科技 |
| Hyundai | 现代单片机 |
| SinoWealth | 中颖电子 |
| Airoha Technology | 络达科技 |
| JIELI Technology | 杰理科技 |
| Buildwin | 建荣集成电路 |
| CT-UNITE | 中科蓝讯 |
| NATION | 国民技术 |
Other programmers can be supported upon request. Please contact us to verify compatibility.
| Customer Type | Why They Need KA42-5000 |
|---|---|
| SMT Assembly Lines | High‑speed tape in/out programming to feed pick‑and‑place machines directly |
| EMS Companies | High‑volume, high‑mix production requires fast changeover and stable throughput |
| IC Solution Providers | Batch programming of MCUs, Flash, and power ICs for customer projects |
| IC Distributors / Agents | Value‑added programming service for clients – need reliable, high‑UPH machines |
| Consumer Electronics OEM/ODM | Mass production of Bluetooth, MCU, and memory chips in tape packaging |
| Automotive Electronics Suppliers | ±0.03mm precision and AOI option satisfy strict quality requirements |
| Programming Service Centers | High daily output demands a fast, durable, and low‑maintenance machine |
| Feature | KA42-3000 | KA42-5000 |
|---|---|---|
| Output Efficiency | 3500 UPH | 6500 UPH (≈85% faster) |
| Programming Stations | 6 stations | 8 stations |
| Vacuum Nozzles | 2 nozzles | 4 nozzles |
| X‑axis Drive | Linear motor | Linear motor |
| Pick & Place Accuracy | ±0.03mm | ±0.03mm |
| Control Mode | PLC | PLC |
| Weight | 257 KG | 255 KG |
| Best For | Mid‑speed production | Ultra‑high speed mass production |
✅ Highest throughput in its class – 6500 UPH
✅ 8 stations + 4 nozzles for maximum parallel processing
✅ Linear motor for precision and durability
✅ Fully automatic tape in/out with hot‑pressing sealing
✅ Wide package support – QFN, SOP, SSOP, TSSOP, SON, QFP
✅ Compatible with 15+ programmer brands
✅ Easy to use – 7" LCD, programmable & storable settings
✅ Low maintenance – replaceable sockets, long‑life linear motor
