| Brand Name: | Kincoto |
| Model Number: | KA2000 |
| MOQ: | 1 |
| Price: | 48000 |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
1.Support IC incoming packaging in tape and reel,tray.Realize four modes: tape in and tape out,tape in and tray out, tray in and tray out, tray in and tape out.
2.12 programming stations,with upper and lower CCD visual alignment,and optional dotting function.
3.MES system integration.

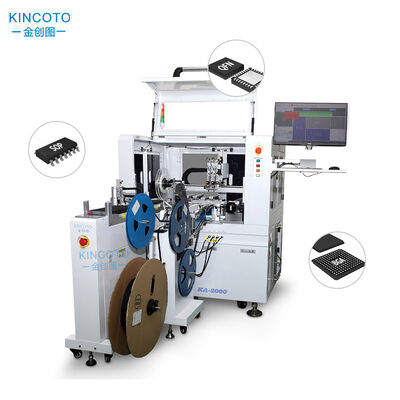

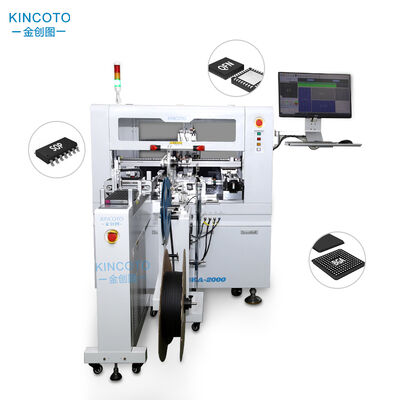

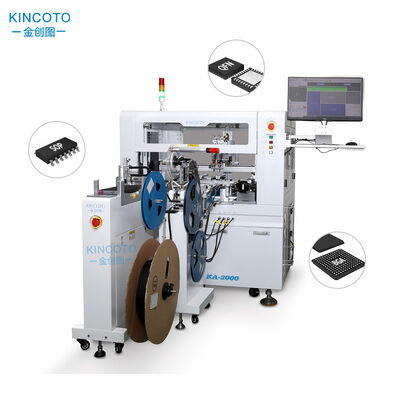

It supports a wide range of chip packages, including QFN, SOP, BGA and QFP.
It's very convenient to program chips of different packages.
A dot function can be added when the tape is woven out.(Red, blue, yellow, green, orange)
| output efficiency | 2000-2500UPH |
| Overall size | 1690*1080*1600mm |
| Supports ic packaging | QFP/QFN/SOP/SSOP/TSSOP.... |
| Programmming station | 12 stations |
| pick-and-place device | 2 vacuum nozzles |
| Monitor | 19"LCD |
| Pick and place accuracy | 0.03mm |
| Control mode | Motion contral card |
| X-axis | Linear motor |
| programming mode | Lower preassure socket |
| Feeding device | Standard 12-16mm optional 8-32mm feeder |
| Input voltage | AC220/50HZ |
| power | 1.3kw |
| Toal weight | 600kg |
