| Brand Name: | KINCOTO |
| Model Number: | KA2000 |
| MOQ: | 1 pcs |
| Price: | 46000USD |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |

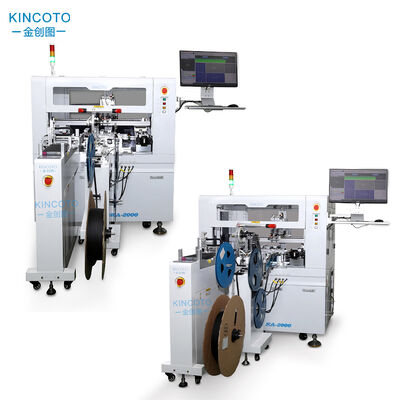

1.Support IC incoming packaging in tape and reel,tray.
2.Realize four modes: tape in and tape out,tape in and tray out, tray in and tray out, tray in and tape out.

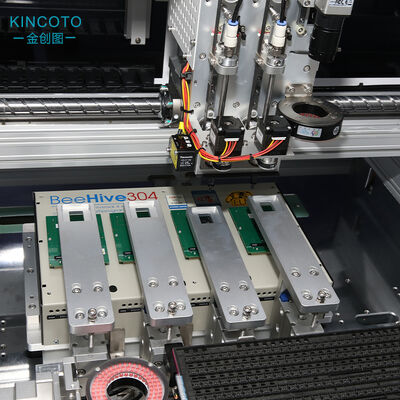

3.12 programming stations,with upper and lower CCD visual alignment,and optional dotting function.
4.Drop-in programming sockets for easy and simple operation; different sockets can be pre-loaded as needed, offering flexibility and reducing changeover time.High equipment compatibility.
5.MES system integration.
It's very convenient to program to different packages.
It can accommodate twelve programming sockets (the size of the programming sockets depends on the chip size). When replacing chips with different packages, for chips of the same brand, only the socket size needs to be changed. For different brands, only the programmer and programming socket need to be changed, which is simple and convenient.
A dot function can be added when the tape is woven out.(Red, blue, yellow, green, orange)
| Output efficiency | 2000-2500UPH |
|---|---|
| Overall size | 1690*1800*1600mm |

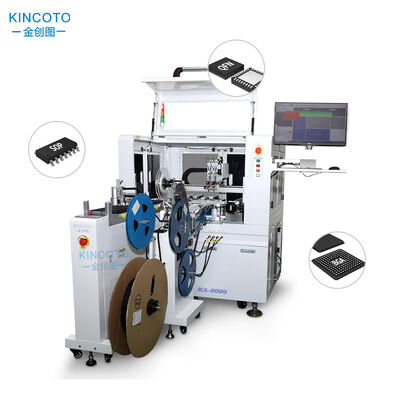

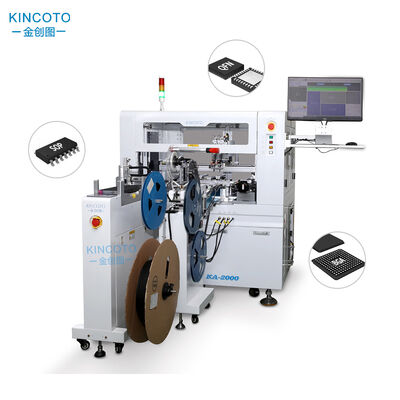

| Support IC packaging | QFP/QFN/SOP/BGA |
| Programming Station | 12 stations |
| Pick-and-place device | 2 vacuum nozzles |
| Control mode | Motion control card |
| Programming mode | Low pressure socket |
| X-axis | Linear motor |
| Positioning system | CCD |

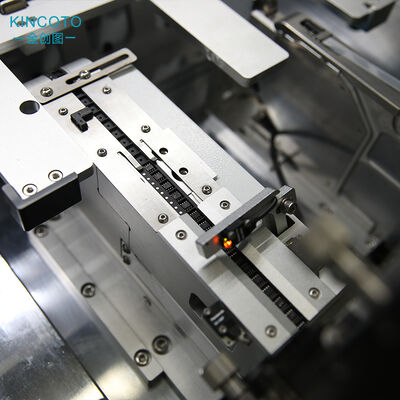

| Feeding device | Standard 12-16mm optional 8-32mm feeder |
| Input voltage | AC220/50HZ |
| Total weight | 600KG |
