| Brand Name: | Kincoto |

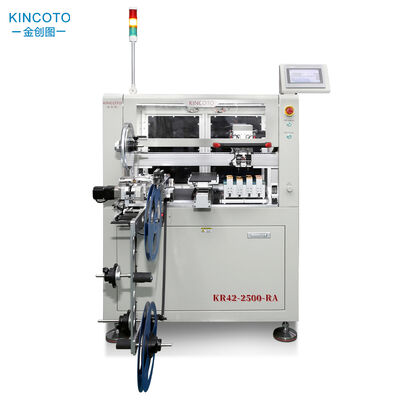

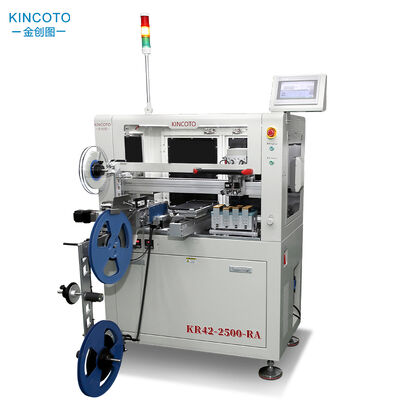

| Model Number: | KR42-2500-RA |
| MOQ: | 1 |
| Price: | 18900 |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
1.Support IC incoming packaging as tape and tray (manual loading).
2.programming stations, 1-4 programming stations can be customized to start.
3.Record the quantity of OK and NG, the operation is simple and convenient, and easy to use.
4.Support four methods: tape in and tray out, tray in and tape out tape in and tape out,tray in and tray out.
5.Supports all offline programmers (generally supports program files in hex and bin formats).
It's very convenient to program to different packages.

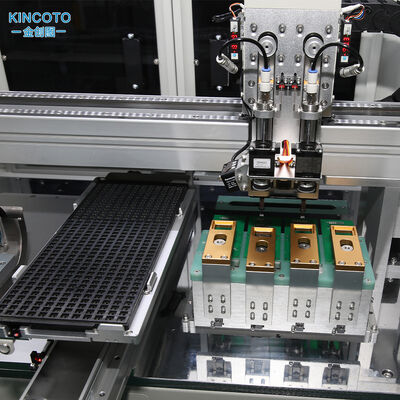

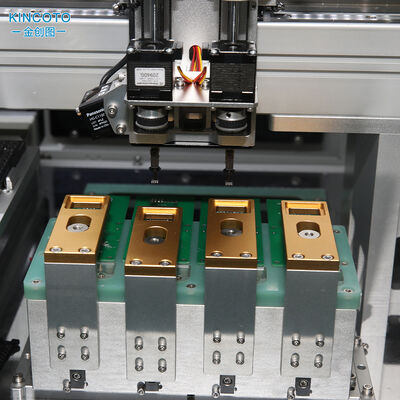

It can accommodate four programming sockets (the size of the programming sockets depends on the chip size). When replacing chips with different packages, for chips of the same brand, only the socket size needs to be changed. For different brands, only the programmer and programming socket need to be changed, which is simple and convenient.
Chip for marking and dotting function.
A dot function can be added when the tape is woven out.(Red, blue, yellow, green, orange)
Parameter
| output efficiency | 2500UPH |
| Overall size | 1000*1080*1450mm |
| Supports ic packaging | QFP/QFN/SOP/SSOP/TSSOP.... |
| Programmming station | 4 stations |
| pick-and-place device | 2 vacuum nozzles |
| Monitor | 7"LCD |
| Pick and place accuracy | 0.03mm |
| Control mode | Motion contral card |
| X-axis | Linear motor |
| programming mode | Lower preassure socket |
| Feeding device | Standard 12-16mm optional 8-32mm feeder |
| Input voltage | AC220/50HZ |
| power | 0.3kw |
| Toal weight | 255kg |
