| Brand Name: | KINCOTO |
| Model Number: | KR42-2500-RA |
| MOQ: | 1 pcs |
| Price: | 19000USD/pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
1.Flexible Multi-Format Inbound/Outbound: Supports 4-in-1 packaging conversion (Tray-to-Tape, Tape-to-Tray, Tray-to-Tray, Tape-to-Tape).
2.Scalable Programming Power: Scalable architecture supporting 1 to 4 customizable programming stations to fit your production volume.
3.Smart Yield Tracking & Zero-Error Sorting: Automatic NG/OK tracking with smart sorting to ensure a 100% qualification rate.
4.User-Friendly & Low-Maintenance: a minimal learning curve—saving labor and training costs.
Parameter
| Output efficiency | 2500UPH |
| Overall size | 1000*1080*1450mm |
| Supports ic packaging | QFP/QFN/SOP/SSOP/TSSOP.... |

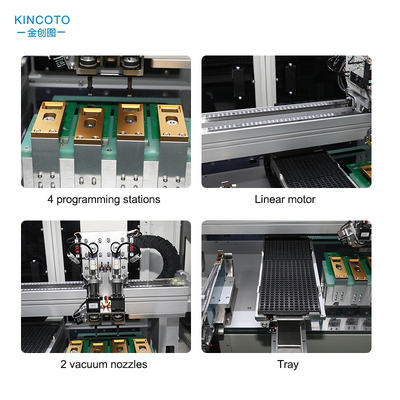

| Programmming station | 4 stations |
| pick-and-place device | 2 vacuum nozzles |
| Monitor | 7"LCD |
| Pick and place accuracy | 0.03mm |
| Control mode | Motion control card |
| X-axis | Linear motor |
| programming mode | Lower preassure socket |
| Feeding device | Standard 12-16mm optional 8-32mm feeder |
| Input voltage | AC220/50HZ |
| power | 0.3kw |
| Total weight | 255kg |
