| Brand Name: | Kincoto |
| Model Number: | KR82-2500R |
| MOQ: | 1 |
| Price: | 16700 |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
1.Support IC incoming materias packaging into trays,automatic tray feeding can support 20 trays.
2.Support offline programmer.

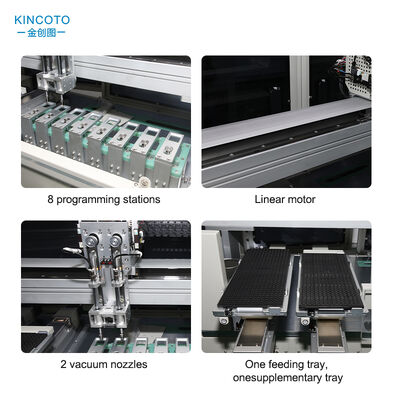

3.8 programming stations, 1-8 programming stations can be customized to start.
4.Optional dotting function, simple and convenient operation, easy to use.
5.Adopt high-precision mechanical structure, ensuring stable and efficient operation.
6.Equipped with complete production data record, convenient for production management and traceability.
Chip for marking and dotting function
A dot function can be added when the tape is woven out.(Red, blue, yellow, green, orange)
| output efficiency | 2500UPH |
| Overall size | 1200*580*1450mm |

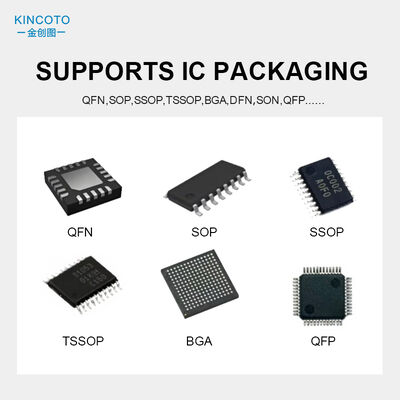

| Supports ic packaging | QFP/QFN/SOP/BGA.... |
| Programmming station | 8 stations |
| pick-and-place device | 2 vacuum nozzles |
| Monitor | 7"LCD |
| Pick and place accuracy | 0.03mm |
| Control mode | Motion contral card |
| X-axis | Linear motor |
| Input voltage | AC220/50HZ |
| power | 0.25kw |
