| Brand Name: | KINCOTO |

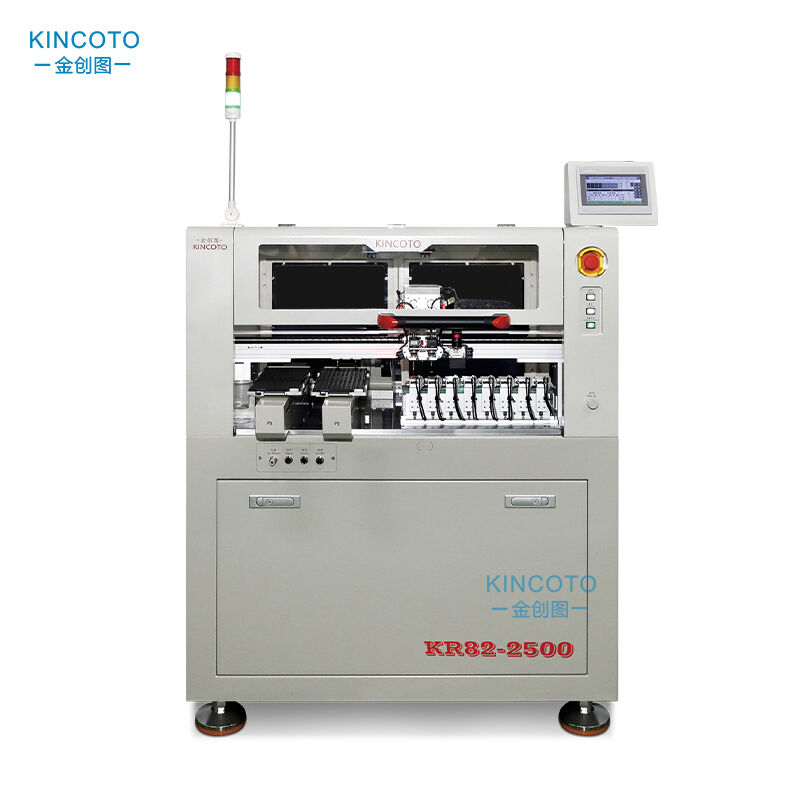

| Model Number: | KR82-2500R |
| MOQ: | 1 pcs |
| Price: | 17000USD / pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
1.Support IC incoming materias packaging into trays,automatic tray feeding can support 20 trays.
2.Support offline programmer.
3.8 programming stations, 1-8 programming stations can be customized to start.
4.Optional dotting function, simple and convenient operation, easy to use.
5.Adopt high-precision mechanical structure, ensuring stable and efficient operation.
6.Equipped with complete production data record, convenient for production management and traceability.
It can accommodate eight programming sockets (the size of the programming sockets depends on the chip size). When replacing chips with different packages, for chips of the same brand, only the socket size needs to be changed. For different brands, only the programmer and programming socket need to be changed, which is simple and convenient.
It can accommodate four programming sockets (the size of the programming sockets depends on the chip size). When replacing chips with different packages, for chips of the same brand, only the socket size needs to be changed. For different brands, only the programmer and programming socket need to be changed, which is simple and convenient.
| Output efficiency | 2500UPH |
| Overall size | 1200*730*1450MM |
| Support IC packaging | QFP/QFN/SON/BGA |

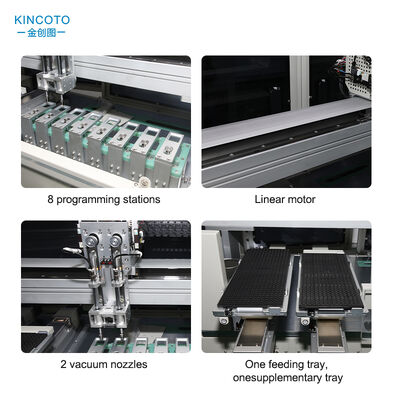

| Programming station | 8 stations |
| Control mode | Motion control card |
| X-axis | Linear motor |
| Programming mode | Lower pressure socket |
| Input voltage | AC220/50HZ |
| Tray | One feeding tray,one supplementary tray |
| Power | 0.4-0.6MPA |
| Total weight | 352KG |
