| Brand Name: | KINCOTO |
| Model Number: | KA42-5000 |
| MOQ: | 1 pcs |
| Price: | 15000USD / pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |

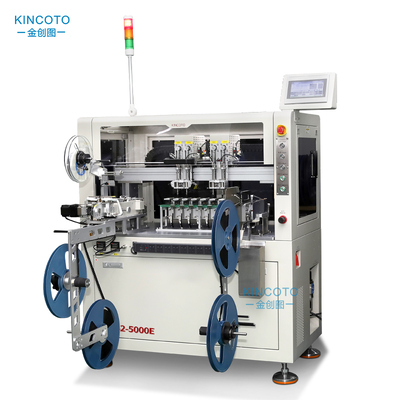

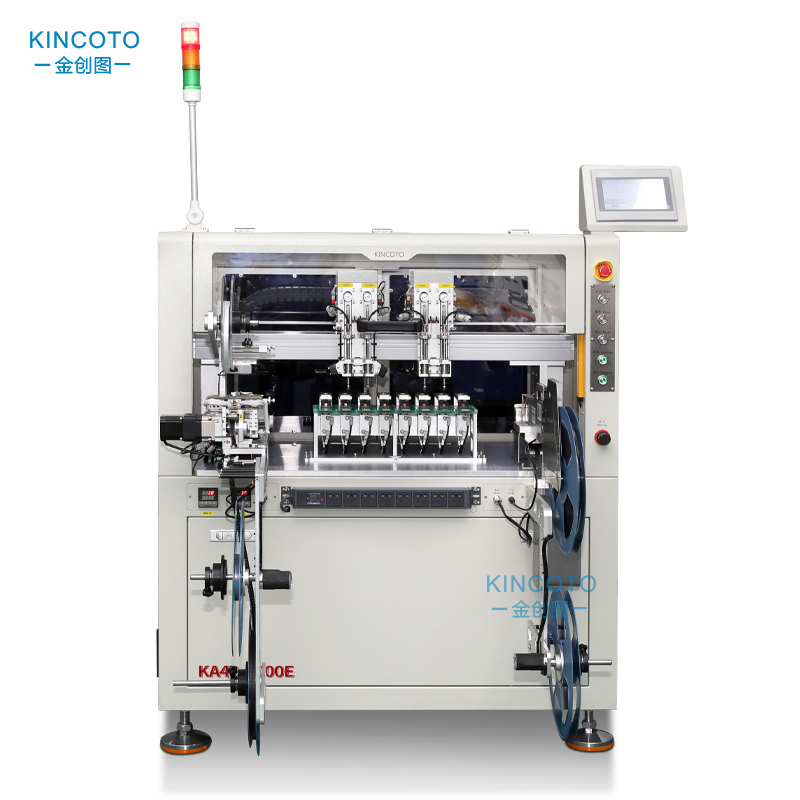

KA42-5000 Fully Automatic Tape & Reel IC Programmer
Max 5000UPH High Speed IC Chip Burning Machine
Support Multiple Package Chips | Uninterrupted Mass Production | Low Failure Rate
- Ultra-high Production Efficiency, Max 5000UPH
Stable running speed reaches 5000 chips per hour, suitable for large-volume mass production orders; no speed drop during long-time continuous working, perfectly meet peak production demand of electronic factories.
- Full Automatic Tape-to-Tape Unmanned Operation
Automatic material loading, IC burning, function testing, NG/OK sorting, automatic reeling and unloading. Only one-time parameter setting required, no full-time operator needed, save manual labor costs.
- Wide Compatibility for Multiple IC Packages
Compatible with SOP, QFN, QFP, SSOP, TSSOP and other common surface-mount chip packages; support mainstream chips such as MCU, Flash, EEPROM, Microcontroller.
- Ultra-low Burning Failure Rate & Intelligent Alarm System
Professional burning control system, burning accuracy up to 99.99%; automatic alarm and automatic rejection for NG chips, real-time production data statistics on screen.
Parameter
| Output efficiency | 6500UPH |
| Overall size | 1150*1080*1450mm |
| Supports ic packaging | QFN/SOP/SSOP/TSSOP/SON/QFP...... |

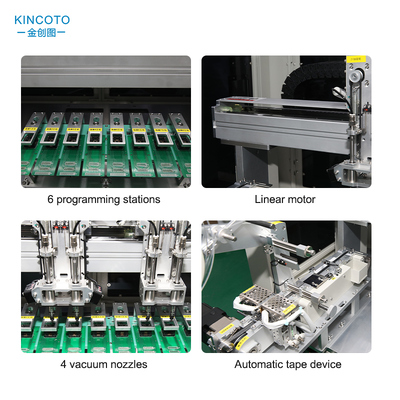

| Programmming station | 8 stations |
| pick-and-place device | 4 vacuum nozzles |
| Monitor | 7"LCD |
| Control mode | PLC |
| X-axis | Linear motor |
| programming mode | Lower preassure socket |
| Feeding device | Standard 12-16mm optional 8-32mm feeder |
| Input voltage | AC220/50HZ |
| Power | 0.25KW |
| Total weight | 255kg |
