| Brand Name: | KINCOTO |
| Model Number: | KA42-3000-AOI |
| MOQ: | 1 |
| Price: | 21688USD/set |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |

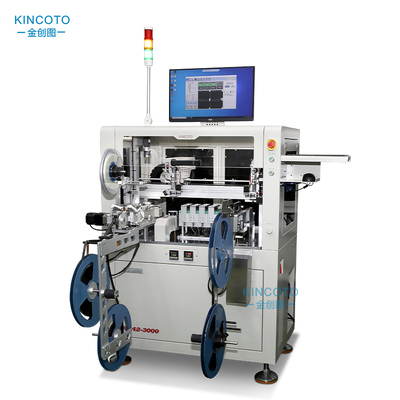

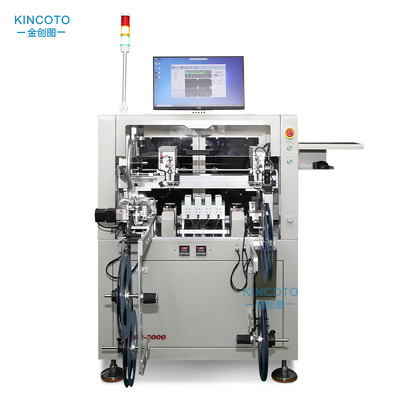

KA42-3000-AOI – Automatic Tape Programming Machine with AOI Vision
The KA42-3000-AOI is an advanced automatic tape programming machine designed for tape in, tape out (reel to reel) mass production. This model integrates AOI (Automated Optical Inspection) technology to deliver exceptional placement accuracy and chip orientation detection.

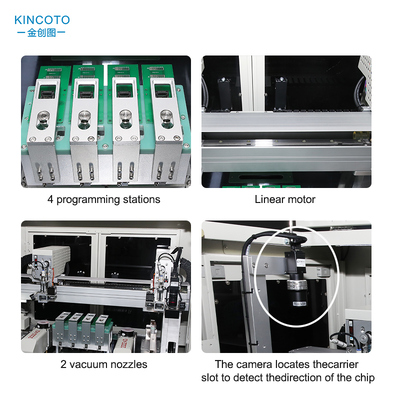

Equipped with a linear motor on the X-axis, 4 programming stations, and 2 vacuum nozzles, the KA42-3000-AOI achieves a stable output of 2500 UPH. The built‑in camera detects carrier slot position and chip direction, ensuring that every chip is placed correctly before programming – significantly reducing placement errors and improving yield.
The machine supports a wide range of IC packages including QFN, SOP, SSOP, TSSOP, SON, and QFP. It comes with a standard feeder for 12-16mm tape width (optional 8-32mm available) and an automatic hot‑pressing sealing device for tape output.
With its 19" LCD touchscreen, motion control card, and flexible 1-4 station activation, the KA42-3000-AOI is an ideal solution for SMT lines, IC solution providers, and EMS companies that demand high precision, automated inspection, and reliable mass production.
| Target Customers |
| SMT assembly factories |
| IC solution providers |
| IC distributors / agents |
| Consumer electronics EMS |
| Automotive electronics Tier 2/3 |
| Industrial control manufacturers |
| Programming service centers |
| # | Selling Point |
|---|---|
| 1 | AOI Offset Correction – Built-in camera detects carrier slot position and chip orientation, ensuring accurate placement before programming |
| 2 | High Precision Placement – ±0.03mm repeatability with X-axis linear motor drive |
| 3 | 2500 UPH Stable Output – 4 programming stations (1-4 customizable) for efficient mass production |
| 4 | Fully Automatic Tape In / Tape Out – Auto peeling, auto hot-pressing sealing, reel to reel operation |
| 5 | Wide Package Compatibility – Supports QFN, SOP, SSOP, TSSOP, SON, QFP, and more |
| 6 | User-Friendly Operation – 19" LCD touchscreen for easy setup and monitoring |
| 7 | Flexible Configuration – Standard 12-16mm feeder, optional 8-32mm, custom widths available |
| 8 | Motion Control Card – Smooth, precise, and reliable control for high-speed operation |
| 9 | Easy Maintenance – Down-pressure sockets are replaceable; linear motor reduces wear |
| 10 | Ideal for SMT & EMS – Perfect for tape-in/tape-out production lines requiring AOI inspection |
| Parameter | Value |
|---|---|
| Model | KA42-3000-AOI |
| Output Efficiency | 2500 UPH |
| Host Size (L×W×H) | 950 × 580 × 1600 mm |
| Overall Size (L×W×H) | 950 × 1080 × 1600 mm |

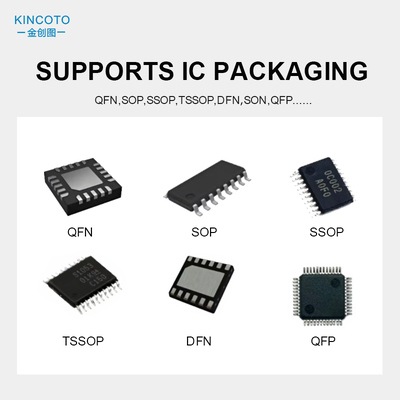

| Supported IC Packages | QFN, SOP, SSOP, TSSOP, SON, QFP, and more |
| Programming Stations | 4 stations (1-4 customizable) |
| Pick & Place Device | 2 vacuum nozzles |
| Monitor | 19" LCD |
| Pick & Place Accuracy | ±0.03 mm |
| Control Mode | Motion control card |
| Programming Mode | Down-pressure socket |
| X-axis Drive | Linear motor |
| Feeding Device | Standard 12-16mm, optional 8-32mm Feeder |
| Discharging Device | Adjustable automatic hot-pressing film sealing device |
| Input Voltage | AC220V / 50Hz |
| Power Consumption | 0.25 KW |
| Air Source | 0.4-0.6 MPA |
| Total Weight | 280 KG |
| 品牌英文名 | 中文名 |
|---|---|
| Sofi-tech | 硕飞科技 |
| SinoMCU | 上海晟矽微电子 |
| Holychip | 上海芯圣电子 |
| Holtek | 合泰半导体 |
| Sonix | 松翰科技 |
| Elan | 义隆电子 |
| Nyquest | 九齐科技 |
| PADAUK | 应广科技 |
| Hyundai | 现代单片机 |
| SinoWealth | 中颖电子 |
| Airoha Technology | 络达科技 |
| JIELI Technology | 杰理科技 |
| Buildwin | 建荣集成电路 |
| CT-UNITE | 中科蓝讯 |
| NATION | 国民技术 |
Other programmers can be supported upon request. Please contact us to verify compatibility.
