| Brand Name: | KINCOTO |
| Model Number: | KR42-2500-RUA |
| MOQ: | 1 |
| Price: | 17000USD/set |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |

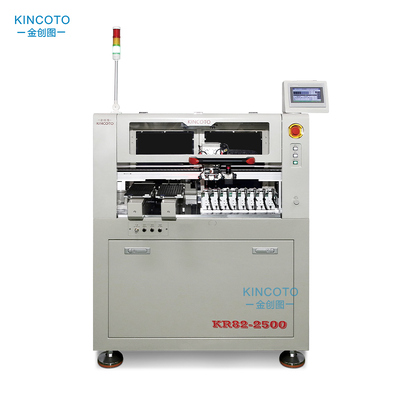

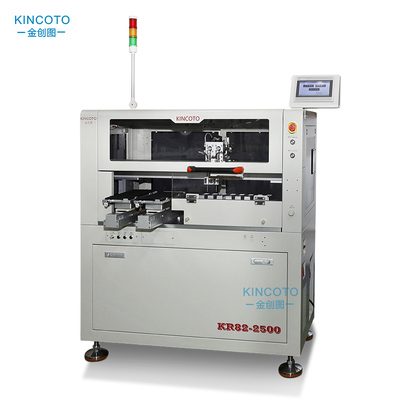

The KR82-2500R is a high-precision automatic tray IC programming machine designed for tray in, tray out mass production. It features 8 programming stations, 2 vacuum nozzles, and a linear motor on the X-axis, delivering 2500 UPH with ±0.03mm placement accuracy.
This model supports a wide range of IC packages including SOP, QFN, BGA, and QFP. The manual tray loading system includes one feeding tray and one supplementary tray – simple to operate, easy to maintain.
The KR82-2500R works seamlessly with most offline programmers and is ideal for IC solution providers, SMT lines, and programming service centers that need high-precision tray programming at a reasonable price.
Manual tray operation keeps the machine cost-effective while maintaining professional-grade performance. Optional dot marking function is available for chip traceability.
| Target Customers |
| SMT assembly factories |
| IC solution providers |
| IC distributors / agents |
| Consumer electronics EMS |
| Automotive electronics Tier 2/3 |
| Industrial control manufacturers |
| Programming service centers |
| # | Selling Point |
|---|---|

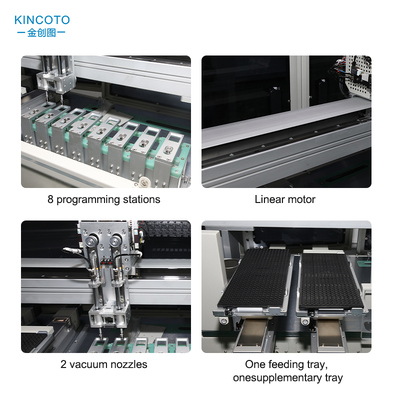

| 1 | 8 Programming Stations – Parallel programming for high throughput, up to 2500 UPH |
| 2 | ±0.03mm High Precision – Linear motor drive ensures accurate placement for fine-pitch packages like QFP and BGA |
| 3 | Dual Nozzle Design – 2 vacuum nozzles for efficient pick-and-place operation |
| 4 | Manual Tray Loading – One feeding tray + one supplementary tray – simple, cost-effective, easy to operate |
| 5 | Wide IC Package Support – Compatible with SOP, QFN, BGA, QFP, and more |
| 6 | Flexible Station Activation – 1-8 stations can be independently enabled |
| 7 | Offline Programmer Compatible – Works with most mainstream programmers (Sofi-tech, SinoMCU, Holtek, Sonix, Elan, etc.) |
| 8 | Optional Dot Marking – For chip traceability and identification |
| 9 | Easy to Use – 7" LCD touchscreen, simple operation, OK/NG count recording |
| 10 | Stable & Durable – 352KG heavy-duty construction, motion control card, linear motor drive |
| Parameter | Value |
|---|---|
| Model | KR82-2500R |
| Output Efficiency | Up to 2500 UPH |
| Host Size (L×W×H) | 1200 × 580 × 1450 mm |
| Overall Size (L×W×H) | 1200 × 730 × 1450 mm |
| Supported IC Packages | SOP, QFN, BGA, QFP |
| Programming Stations | 8 stations (1-8 independently selectable) |
| Pick & Place Device | 2 vacuum nozzles |
| Monitor | 7" LCD |
| Pick & Place Accuracy | ±0.03 mm |
| Control Mode | Motion control card |
| X-axis Drive | Linear motor |
| Programming Mode | Down-pressure socket |
| Tray System | One feeding tray + one supplementary tray (manual loading) |
| Input Voltage | AC220V / 50Hz |
| Power Consumption | 0.25 KW |
| Air Source | 0.4-0.6 MPA |
| Total Weight | 352 KG |

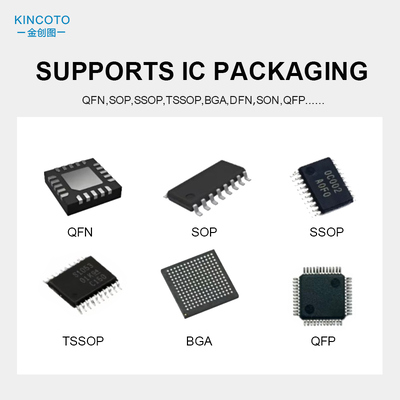

| Package Type | Examples |
|---|---|
| SOP(Small Outline Package) | SOP8, SOP16, SOP20, etc. |
| QFN(Quad Flat No-lead) | QFN32, QFN48, etc. |
| BGA(Ball Grid Array) | BGA packages |
| QFP (Quad Flat Package) | QFP64, QFP100, QFP144, etc. |
| Others | Available upon request |
The KR82-2500R works seamlessly with most mainstream offline programmers, including:
Sofi-tech, SinoMCU, Holychip, Holtek, Sonix, Elan, Nyquest, PADAUK, Hyundai, SinoWealth, Airoha Technology, JIELI Technology, Buildwin, CT-UNITE, NATION, and more.
Other programmers can be supported upon request.
| Customer Need | KR82-2500R Solution |
|---|---|
| High-precision tray programming | ±0.03mm accuracy + linear motor + 8 stations |
| Multiple IC packages (SOP/QFN/BGA/QFP) | Wide package compatibility |
| Simple, cost-effective tray loading | Manual tray system – one feeding tray, one supplementary tray |
| High throughput | 2500 UPH with 8 parallel stations |
| Integration with existing programmers | Works with most offline programmers |
| Traceability needs | Optional dot marking function(An automatic tray feeding device must be installed to enable the dotting function.) |
| Customer Type | Why KR42-2500-RUA Fits |
|---|---|
| EMS Companies | Receive chips in tube, tape, or tray – output to tape or tray. One machine handles all combinations. |
| IC Solution Providers | Flexible input/output formats adapt to any customer requirement. |
| Programming Service Centers | Serve multiple customers with different packaging needs – without buying multiple machines. |
| IC Distributors (Value-Added Service) | Program chips for tray and output in customer-specified format. |
| R&D Labs / Small Batch Production | Handle any incoming packaging – no need to sort or repackage before programming. |

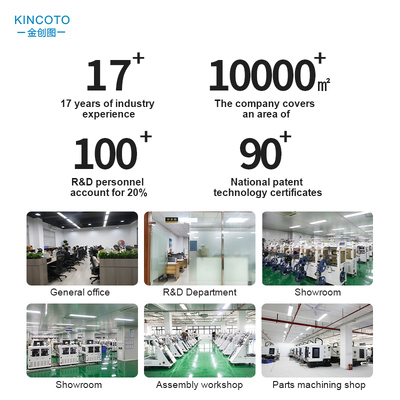

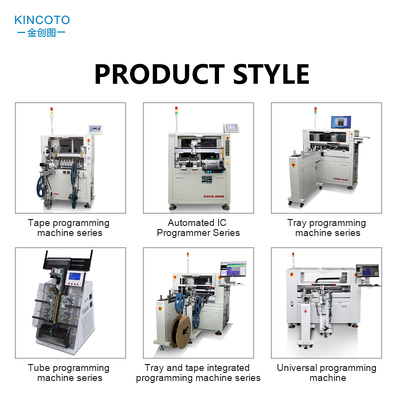

Shenzhen Kingcoto Electronic Equipment Co., Ltd. (abbreviated as KINCOTO), founded on November 22, 2009, is an automated equipment manufacturing enterprise integrating R&D, sales, production, and service. It provides comprehensive solutions for chip manufacturers, solution companies, chip agents, and programming factories, specializing in the production of tube programmers, tape programmers, tray programmers, and combined tape-and-reel/tray programmers.
With a focus on independent R&D, an efficient sales team, and competitive pricing, the company follows a brand-oriented development model, adhering to customer and market demands to achieve win-win cooperation. It has now established significant corporate scale, product advantages, and brand recognition. The factory covers an area of 10,000 square meters, employs over 100 staff, with R&D personnel accounting for more than 20%.
The company possesses an intellectual property management system, proprietary trademarks, ISO9001 quality management system certification, ISO14000 environmental management system, after-sales service certification, and holds over 90 national patent certificates.
Since its establishment, the company has been honored with multiple titles, including "National High-Tech Enterprise," "Innovative Enterprise," and "Specialized, Refined, Distinctive, and Innovative (SRDI) Enterprise." Its products are exported to over 40 countries, including the United States, France, Italy, Spain, India, South Korea, Russia, Brazil, Turkey, and Vietnam.
Answer: With over 20 years of experience in IC programming machines, we have a professional technical team to provide you with the best and most cost-effective solution. Our efficient after-sales service team has earned a strong reputation among our customers. Win-win long-term cooperation is our lifetime goal!
Answer: We accept T/T (bank transfer), L/C, Western Union, and PayPal. For the first cooperation, we usually require a 50% deposit and 50% balance before shipment. For regular customers, terms are negotiable.
Answer: For standard models (like KA8E, 1213D, KU8000S), the delivery time is around 3-7 working days. For non-standard or customized models, it usually takes 15-25 working days depending on the configuration.
Answer: All machines come with a 1-year warranty (excluding consumable parts such as programming sockets and probes). After the warranty period, we still provide lifetime technical support and spare parts at the lowest cost. Any problems, just contact us – we will guide you to fix it remotely or send replacement parts.
Answer: Quality and service are our foundation. Our company was founded in 2003 and has over 20 years of experience. All equipment is CE certified and produced under ISO9001 quality management standards. Our quality is assured and approved by customers worldwide.
Answer: We are a direct factory with our own R&D, production, and sales team. You are always welcome to visit our 10,000m² facility in Shenzhen.
Answer: No, it depends on the chip package and packaging (tube, tape, or tray). Please send us your chip datasheet, and we will recommend the most suitable model for your chip.
Answer: Simply send us the chip specifications (datasheet or clear photos of the chip package) and we will confirm compatibility and recommend the right solution.
Answer: We support a wide range of packages, including:
SOP8, SOP16, SOP150, SOP210
SSOP, TSSOP, SON
QFN, QFP, BGA
DIP300 and more
Answer: Yes. Our automation machines (such as KA1800, KA2000, and KU8000S series) are designed to work with most mainstream offline programmers. Please let us know your programmer brand and model, and we will confirm the signal interface compatibility.
Answer: Yes. We have a dedicated R&D team that supports non-standard customization – including track width, programming socket, vision system, and even full machine structure based on your specific chip and production needs.
Answer: We ship by air, sea, or express (DHL/FedEx/UPS) according to your request. All machines are packed in a strong wooden case (plywood or solid wood with fumigation certificate) to ensure safe delivery.
Answer: Yes. We provide English manuals, video tutorials, and remote technical support. For large orders or specific customer requests, we can also arrange online training via video call.
Answer: Yes. We welcome you to visit our factory in Shenzhen. For customers who cannot visit, we can provide a live video demo showing the machine running with your chips.
