| Brand Name: | KINCOTO |
| Model Number: | KA3000-GS6 |
| MOQ: | 1 |
| Price: | 66176-66900USD/set |
| Payment Terms: | T/T |
| Supply Ability: | 100 |
The KA3000-GS6 is a high-capacity tray and tape integrated IC programming machine with a built-in universal programmer, designed for high-volume, flexible production environments. It supports tray in/tray out, tape in/tape out, and tube in (optional) , offering 6 operation modes in a single machine.

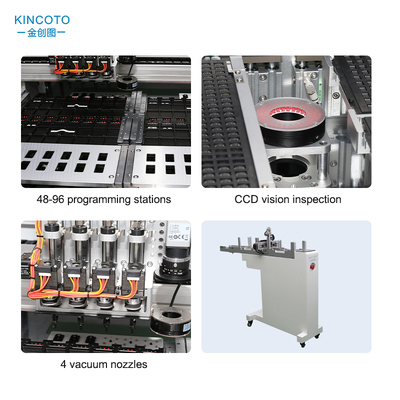

Equipped with 48–96 programming stations, 4 vacuum nozzles, CCD vision inspection, and a linear motor on the X-axis, the KA3000-GS6 delivers 3,000–3,500 UPH with ±0.03mm placement accuracy. The built-in universal programmer supports SPI Flash, EPROM, EEPROM, MCU, MPU, eMMC, PLCC, and more – eliminating the need for external programmers.
This model is ideal for high-mix, high-volume production environments such as EMS companies, IC solution providers, programming service centers, and automotive electronics manufacturers.
Key differentiator: Unlike conventional machines that require external offline programmers, the KA3000-GS6 features a built-in universal programmer – simply load your program file and start programming immediately.
| # | Selling Point |
|---|---|
| 1 | 48–96 Programming Stations – Massive parallel programming capacity for maximum throughput |
| 2 | Built-in Universal Programmer – Supports SPI Flash, EPROM, EEPROM, MCU, MPU, eMMC, PLCC – no external programmer needed |
| 3 | 3,000–3,500 UPH – High-speed output for demanding production schedules |
| 4 | 6 Operation Modes – Tray→Tape, Tape→Tape, Tube→Tape, Tape→Tray, Tray→Tray, Tube→Tray |
| 5 | 4 Vacuum Nozzles – Increased productivity with brake function to prevent chip drop during power failure |
| 6 | CCD Vision Inspection – Real-time offset correction and chip direction detection for ±0.03mm accuracy |
| 7 | Automatic Tray Feeder – Supports up to 20 trays for continuous, unattended operation |
| 8 | Linear Motor Drive – High speed, precision, and durability on the X-axis |
| 9 | MES System Docking – Enables full production traceability and data logging |
| 10 | Plug-in Programming Sockets – Quick changeover between different IC packages |
| 11 | Wide IC Package Support – QFN, SOP, SSOP, TSSOP, SON, QFP, BGA, and more |
| 12 | Optional Functions – Dot marking, laser marking, AOI detection, altimeter |
| 13 | Flexible Station Activation – 1–96 stations can be independently enabled |
| 14 | Heavy-Duty Construction – 950KG stable platform for 24/7 continuous operation |
| 15 | Tube In Optional – Tube feeding device can be added (pre-communication required) |
| Parameter | Value |
|---|---|
| Model | KA3000-GS6 |
| Output Efficiency | 3,000 – 3,500 UPH |
| Host Size (L×W×H) | 1,730 × 980 × 1,400 mm |
| Overall Size (L×W×H) | 2,220 × 2,000 × 1,580 mm |
| Supported IC Packages | QFN, SOP, QFP, SSOP, TSSOP, BGA, and more |
| Programming Stations | 48–96 stations (flexible activation) |
| Pick & Place Device | 4 vacuum nozzles |
| Monitor | 19" LCD |
| Pick & Place Accuracy | ±0.03 mm |
| Control Mode | Motion control card |
| X-axis Drive | Linear motor |
| Programming Mode | Down-pressure socket |
| Positioning System | CCD vision inspection |
| Tray System | Automatic tray feeder – supports up to 20 trays |
| Tape Feeder | Standard 12–16mm, optional 8–32mm |
| Tape Discharge | Adjustable automatic hot‑pressing film sealing |
| Built-in Programmer | Universal type – supports SPI Flash, EPROM, EEPROM, MCU, MPU, eMMC, PLCC |
| Input Voltage | 220V ±10%, 50Hz (3‑wire) |
| Power Consumption | 1.3 KW |
| Air Source | 0.4 – 0.6 MPA |
| Total Weight | 950 KG |
| Mode | Input | Output | Best For |
|---|---|---|---|
| 1 | Tray | Tape | Tray-in chips need tape output for SMT |
| 2 | Tape | Tape | Standard reel-to-reel programming |
| 3 | Tube | Tape | Tube-in chips need tape output |
| 4 | Tape | Tray | Tape-in chips need tray output |
| 5 | Tray | Tray | Classic tray-to-tray programming |
| 6 | Tube | Tray | Tube-in chips need tray output |
Tube feeding device is optional – please communicate with us in advance if needed.
| Customer Type | Why KA3000-GS6 Fits |
|---|---|
| EMS Companies | One machine supports tray, tape, and tube input – flexible for high‑mix production |
| IC Solution Providers | Built‑in universal programmer eliminates external programmer compatibility issues |
| Programming Service Centers | 48–96 stations enable massive parallel programming for high daily output |
| Automotive Electronics | ±0.03mm precision + CCD vision meets strict quality requirements |
| Consumer Electronics ODM/OEM | High‑volume production with flexible input/output formats |
| IC Distributors (Value‑Added Services) | Program multiple chip types with one machine – fast changeover between packages |
✅ Built‑in universal programmer – no external programmer needed
✅ 48–96 programming stations – industry‑leading parallel capacity
✅ 3,000–3,500 UPH – high‑speed output for large‑scale production
✅ 6 operation modes – tray/tape/tube input, tape/tray output
✅ CCD vision inspection – ±0.03mm precision with real‑time offset correction
✅ 4 nozzles + linear motor – speed and precision combined
✅ Automatic tray feeder – 20 trays for continuous operation
✅ MES system docking – full traceability and data logging
✅ Optional marking functions – dot marking, laser marking
✅ Heavy‑duty 950KG construction – stable for 24/7 operation
Free repair or replacement for quality-related issues within 1 year
Technical support during operation (remote assistance available)
Consultation services for product usage, maintenance, and optimization
The KA3000-GS6 features a built-in universal programmer
An offline mass-production programmer that supports the programming of various chip types—including MCUs, eMMC, SPI NOR/NAND flash, Parallel NOR/NAND flash, EEPROM, and DSPs—from major manufacturers and in various package types.
This automated offline programming solution utilizes Wuxin ET9800 programming core modules configured within a universal automated programming system. Featuring nine integrated ET9800 modules, the system supports 72-station automated offline programming and achieves an actual throughput of up to 3,000 UPH.

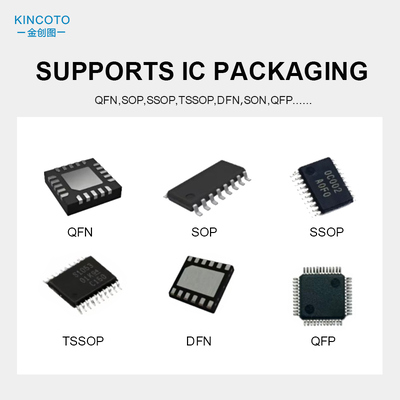

| Package Type | Examples |
|---|---|
| QFN | QFN32, QFN48, etc. |
| SOP | SOP8, SOP16, SOP20, etc. |
| SSOP | SSOP packages |
| TSSOP | TSSOP packages |
| SON | SON packages |
| QFP | QFP64, QFP100, QFP144, etc. |
| BGA | BGA packages |
Other packages available upon request.
Shenzhen Kingcoto Electronic Equipment Co., Ltd. (abbreviated as KINCOTO), founded on November 22, 2009, is an automated equipment manufacturing enterprise integrating R&D, sales, production, and service. It provides comprehensive solutions for chip manufacturers, solution companies, chip agents, and programming factories, specializing in the production of tube programmers, tape programmers, tray programmers, and combined tape-and-reel/tray programmers.
With a focus on independent R&D, an efficient sales team, and competitive pricing, the company follows a brand-oriented development model, adhering to customer and market demands to achieve win-win cooperation. It has now established significant corporate scale, product advantages, and brand recognition. The factory covers an area of 10,000 square meters, employs over 100 staff, with R&D personnel accounting for more than 20%.
The company possesses an intellectual property management system, proprietary trademarks, ISO9001 quality management system certification, ISO14000 environmental management system, after-sales service certification, and holds over 90 national patent certificates.
Since its establishment, the company has been honored with multiple titles, including "National High-Tech Enterprise," "Innovative Enterprise," and "Specialized, Refined, Distinctive, and Innovative (SRDI) Enterprise." Its products are exported to over 40 countries, including the United States, France, Italy, Spain, India, South Korea, Russia, Brazil, Turkey, and Vietnam.
Answer: With over 20 years of experience in IC programming machines, we have a professional technical team to provide you with the best and most cost-effective solution. Our efficient after-sales service team has earned a strong reputation among our customers. Win-win long-term cooperation is our lifetime goal!
Answer: We accept T/T (bank transfer), L/C, Western Union, and PayPal. For the first cooperation, we usually require a 50% deposit and 50% balance before shipment. For regular customers, terms are negotiable.
Answer: For standard models (like KA8E, 1213D, KU8000S), the delivery time is around 3-7 working days. For non-standard or customized models, it usually takes 15-25 working days depending on the configuration.
Answer: All machines come with a 1-year warranty (excluding consumable parts such as programming sockets and probes). After the warranty period, we still provide lifetime technical support and spare parts at the lowest cost. Any problems, just contact us – we will guide you to fix it remotely or send replacement parts.
Answer: Quality and service are our foundation. Our company was founded in 2003 and has over 20 years of experience. All equipment is CE certified and produced under ISO9001 quality management standards. Our quality is assured and approved by customers worldwide.
Answer: We are a direct factory with our own R&D, production, and sales team. You are always welcome to visit our 10,000m² facility in Shenzhen.
Answer: No, it depends on the chip package and packaging (tube, tape, or tray). Please send us your chip datasheet, and we will recommend the most suitable model for your chip.
Answer: Simply send us the chip specifications (datasheet or clear photos of the chip package) and we will confirm compatibility and recommend the right solution.
Answer: We support a wide range of packages, including:
SOP8, SOP16, SOP150, SOP210
SSOP, TSSOP, SON
QFN, QFP, BGA
DIP300 and more
Answer: Yes. Our automation machines (such as KA1800, KA2000, and KU8000S series) are designed to work with most mainstream offline programmers. Please let us know your programmer brand and model, and we will confirm the signal interface compatibility.
Answer: Yes. We have a dedicated R&D team that supports non-standard customization – including track width, programming socket, vision system, and even full machine structure based on your specific chip and production needs.
Answer: We ship by air, sea, or express (DHL/FedEx/UPS) according to your request. All machines are packed in a strong wooden case (plywood or solid wood with fumigation certificate) to ensure safe delivery.
Answer: Yes. We provide English manuals, video tutorials, and remote technical support. For large orders or specific customer requests, we can also arrange online training via video call.
Answer: Yes. We welcome you to visit our factory in Shenzhen. For customers who cannot visit, we can provide a live video demo showing the machine running with your chips.
