| Brand Name: | KINCOTO |
| Model Number: | KA42-2000 |
| MOQ: | 1 pcs |
| Price: | 15000USD / pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |

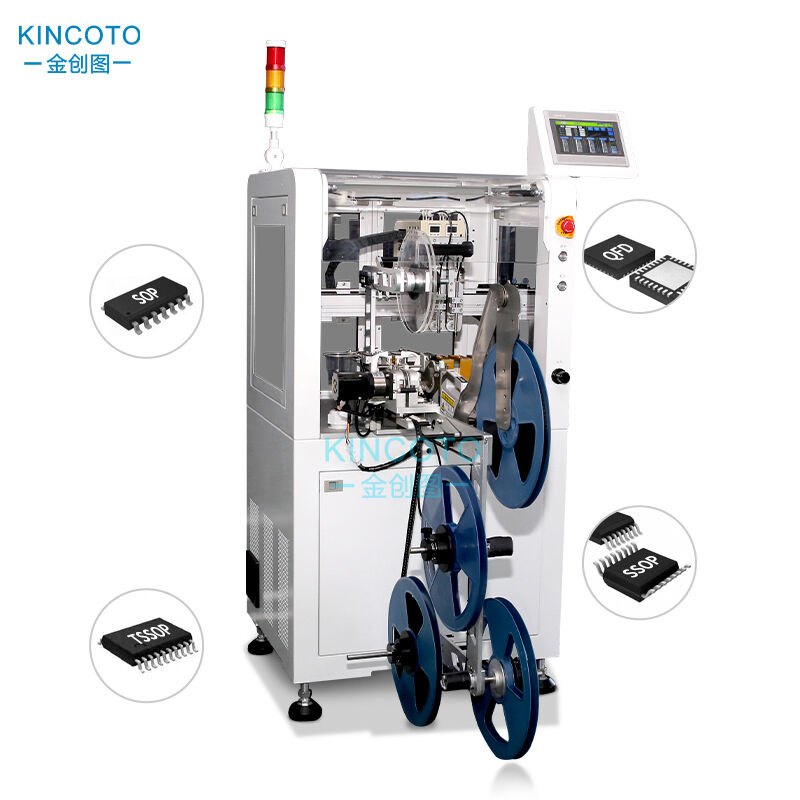

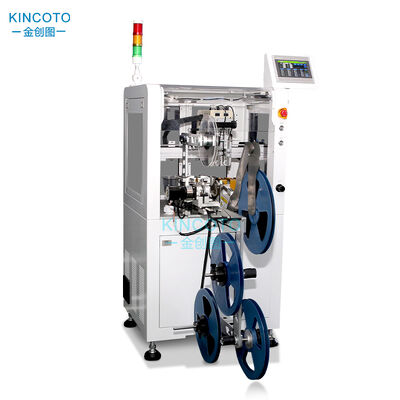

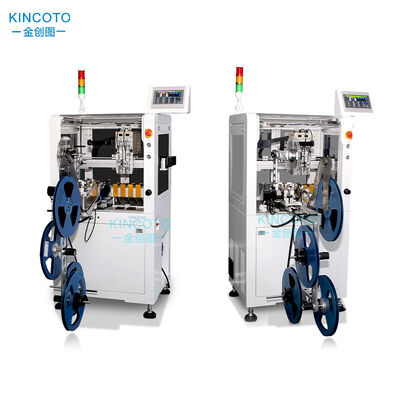

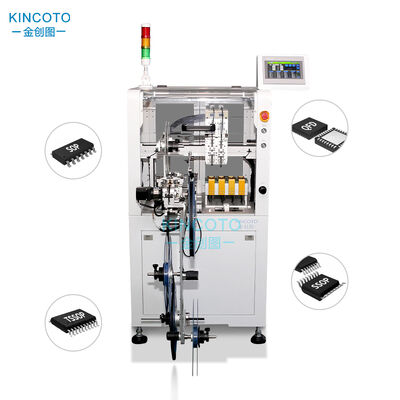

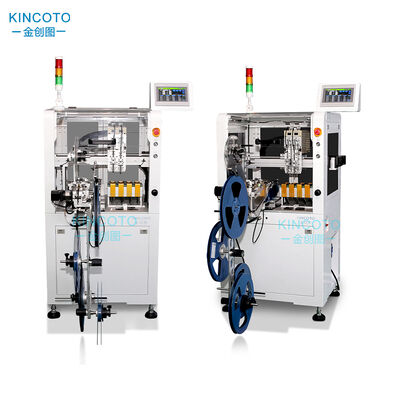

1.Support IC incoming materials to be packaged in tape and reel,enabling tape in and out,and automatically packaged after programming is completed.
2.Customize 1-4 programming stations to start,automatically distinguish OK and NG.
3.High picking and placing accuracy,simple operation and easy to use.
4.The programming plan can be stored and accessed at any time.
A dot function can be added when the tape is woven out.(Red, blue, yellow, green, orange)
Parameter
| Output efficiency | 2000UPH |
| Overall size | 870*1170*1630mm |
| Programming Station | 4 Stations |
| Support IC packaging | QFN/SOP/SSOP/TSSOP/SON/QFP...... |
| Take-and-place device | 2 vacuum nozzles |
| Control mode | Embedded control panel |
| Programming mode | Low pressure socket |
| Feeding device | Standard 12-16mm optional 8-32mm feeder |
| Input voltage | AC220/50HZ |
| Power | 0.25KW |
| Air source | 0.4-0.6MPA |
| Total weight | 140KG |
