| Brand Name: | KINCOTO |
| Model Number: | KA42-2000 |
| MOQ: | 1 |
| Price: | 11700~15000USD/set |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |

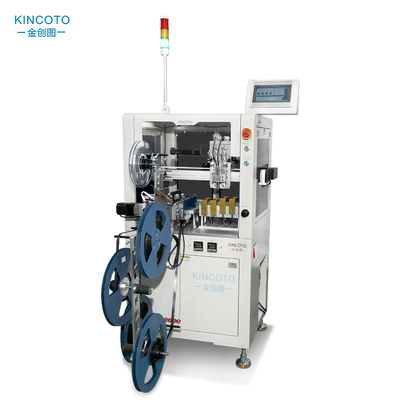

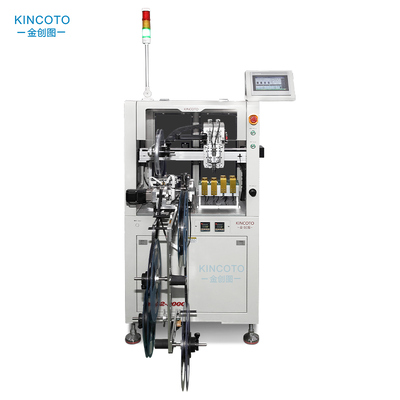

The KA42-2000 is an automatic IC programming machine specifically designed for tape-in, tape-out operations. It is an ideal solution for high-volume production lines requiring efficient, reliable, and fully automated chip burning.
This model features 4 programming stations, dual vacuum nozzles (pick and place), and supports a wide range of IC packages including QFN, SOP, SSOP, TSSOP, SON, QFP, and even micro chips as small as 0.7x1.2mm. With a maximum output of 2000 UPH, it significantly improves programming efficiency while reducing manual labor.
| Parameter | Details |
|---|---|
| Model | KA42-2000 |
| Output Efficiency | Up to 2000 UPH |
| Programming Stations | 4 stations (flexible activation – can use 1, 2, 3, or 4 stations independently) |
| Pick & Place Device | 2 vacuum nozzles (one pick, one place – improves cycle time) |

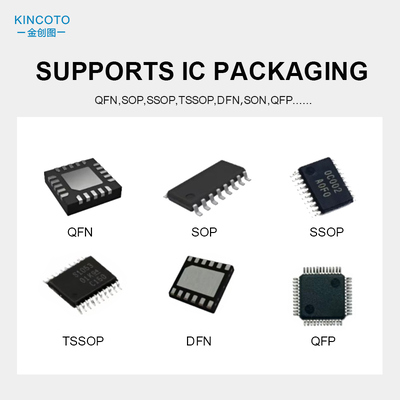

| Supported IC Packages | QFN, SOP, SSOP, TSSOP, SON, QFP, and small chips (e.g., 0.7x1.2mm) |
| Pick & Place Accuracy | ±0.03mm (precision ground lead screw transmission) |
| Control Mode | Microcontroller |
| Programming Mode | Down-pressure socket |
| Feeder (Incoming) | Standard 12-16mm, optional 8mm / 24mm / 32mm (custom widths available upon request) |
| Discharging (Outgoing) | Automatic hot-pressing film sealing device (tape out) |
| NG Sorting | Dedicated NG collection area |
| Socket Type | Down-pressure programming socket (easy replacement) |
| Programmer Compatibility | Supports most offline programmers |
| Optional Functions | Dot marking (white/red/blue/green/yellow) / AOI inspection / laser marking (contact for recommendation) |
| Power Supply | AC220V / 50Hz |
| Power Consumption | 0.25KW |
| Air Source | 0.4-0.6 MPA |
| Host Dimensions (L×W×H) | 680×550×1270mm |
| Overall Dimensions (L×W×H) | 870×1050×1450mm |
| Total Weight | 140KG |
1. Fully Automatic Tape In/Tape Out
Designed for reel-to-reel (tape-in, tape-out) operation.
Automatic film peeling and hot-pressing sealing.
Supports standard 12-16mm feeder; optional 8/24/32mm and custom widths available.
2. High Precision & Stability
Precision ground lead screw drive system for high positioning accuracy (±0.03mm) and low vibration.
Long service life, wear-resistant, and low maintenance.

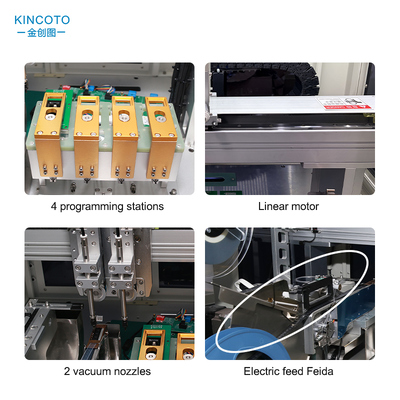

3. Flexible Programming Stations
Equipped with 4 independent programming stations.
Each station can be turned on/off freely according to production needs.
Can connect to multiple offline programmers simultaneously.
4. Dual Nozzle Pick & Place
2 vacuum nozzles work in a “one pick, one place” mode.
Maximizes throughput while ensuring gentle handling of delicate ICs.
Anti-drop design prevents chip damage during power failure.
5. Wide IC Package Support
Compatible with QFN, SOP, SSOP, TSSOP, SON, QFP, and micro chips (as small as 0.7×1.2mm).
Suitable for both standard and fine-pitch packages.
6. NG Sorting & Quality Control
Dedicated NG collection area for automatically rejected chips.
Optional AOI inspection system (0.5×0.5mm to 15×15mm chips) – includes 1.3MP camera, 6M telecentric lens, 48-sector ring light, industrial host, and 10” touch display.
7. Optional Dot Marking
Dot marking device available (colors: white, red, blue, green, yellow) for post-programming identification.
8. Easy Maintenance
Down-pressure sockets are easy to replace.
Clear video tutorials and documentation provided.
The KA42-2000 is designed for easy integration with most offline programmers. Standard signal interface allows communication between the machine and the programmer for start, stop, OK/NG judgment, and other production control functions.
Detailed signal pin assignment diagram available upon request.
Free repair or replacement for quality-related issues within 1 year.
Technical support during operation (remote assistance available).
Consultation services for product usage, maintenance, and optimization.
| Customer Need | KA42-2000 Solution |
|---|---|
| High-volume tape-in/tape-out programming | Fully automatic reel-to-reel, 2000 UPH |
| Multiple IC types (QFN, SOP, QFP, micro chips) | Wide package compatibility |
| Precision placement for fine-pitch ICs | ±0.03mm accuracy with lead screw drive |
| Flexible production (small to large batches) | 4 stations – use 1, 2, 3, or 4 as needed |
| Quality control & traceability | Optional AOI + dot marking |
| Easy integration with existing programmers | Supports most offline programmers |
