| Brand Name: | KINCOTO |
| Model Number: | KA42-2000 |
| MOQ: | 1 pcs |
| Price: | 15000USD / pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |

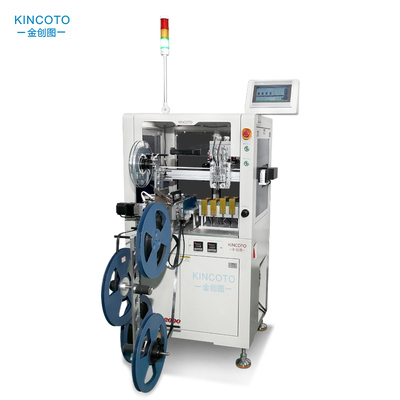

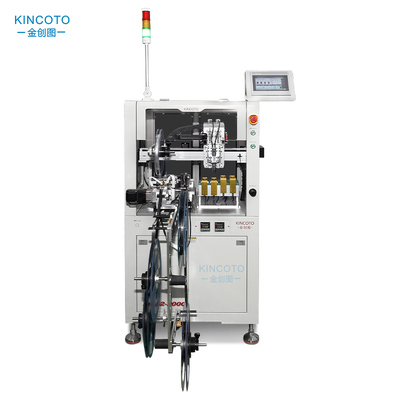

1.Full Tape-to-Reel Automatic Packaging
Adopts tape-in & tape-out working mode. IC raw materials loaded from tape reel, after programming finished, finished chips will be automatically taped and rewound into new reels directly, saving extra manual packaging procedure.

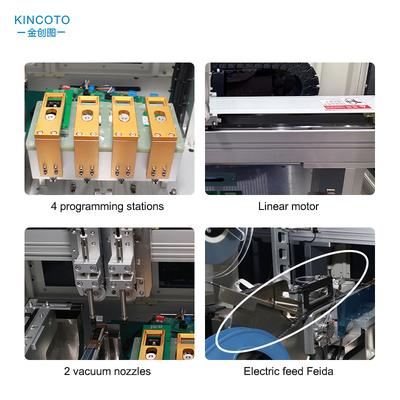

2.Optional 1~4 Programming Sockets + Auto OK/NG Sorting
Configurable with 1 to 4 programming stations upon customer’s customization. The machine can automatically identify qualified and defective ICs after programming.
3.High Precision Pick & Place, User-friendly Operation
Equipped with high-precision pickup mechanism to guarantee stable placement accuracy. Humanized control design, easy setup and simple operation for workers.
4.Storable Programming Files for Quick Switch
Multiple programming schemes can be saved inside the system, operators can call up required programs instantly for different chip models, shorten model changeover time.
Application Range
Suitable for SMT, PCBA, IoT and consumer electronics manufacturers for mass IC programming production.
Parameter
| Output efficiency | 2000UPH |
| Overall size | 870*1170*1630mm |
| Programming Station | 4 Stations |
| Support IC packaging | QFN/SOP/SSOP/TSSOP/SON/QFP...... |
| Pick-and-place device | 2 vacuum nozzles |
| Control mode | Embedded control panel |
| Programming mode | Low pressure socket |
| Feeding device | Standard 12-16mm optional 8-32mm feeder |
| Input voltage | AC220/50HZ |
| Power | 0.25KW |
| Air source | 0.4-0.6MPA |
| Total weight | 140KG |
