| Brand Name: | Kincoto |
| Model Number: | KA42-3000 |
| MOQ: | 1 |
| Price: | 12850 |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |

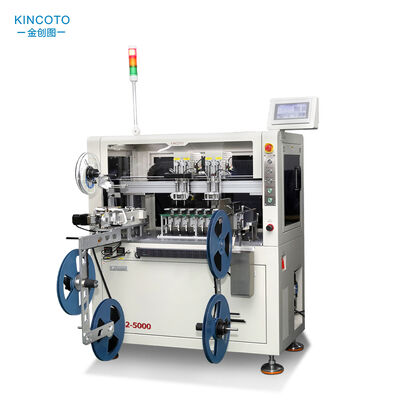

1.Support IC incoming materials to be packaged in tape and reel, enabling tape in and out, and automatically packaged after programming is completed.
2.Production capacity 3500UPH, six programming stations, customized 1-6 programming stations to start, automatically distinguish OK and NG.
3.High picking and placing accuracy, simple operation and easy to use.
4.The programming plan can be stored, accessed for programming at any time, and the corresponding pro-gramming socket can be replaced by different packages.
5.Stable transmission structure ensures smooth operation and effectively protects ICs from damage.Supports production data recording and statistics for process traceability and capacity management.

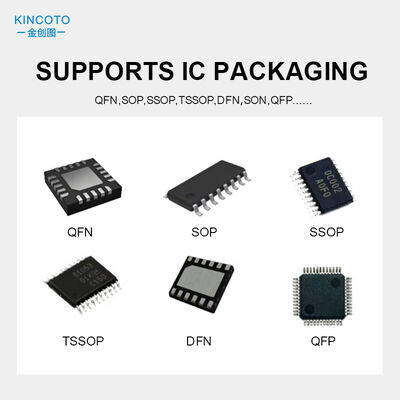

It supports a wide range of chip packages, including QFN, SOP, TSSOP,SON and QFP.
It's very convenient to program chips of different packages.
| output efficiency | 3500UPH |
| Overall size | 950*580*1450mm |
| Supports ic packaging | QFN/SOP/SSOP/TSSOP/SON/QFP..... |

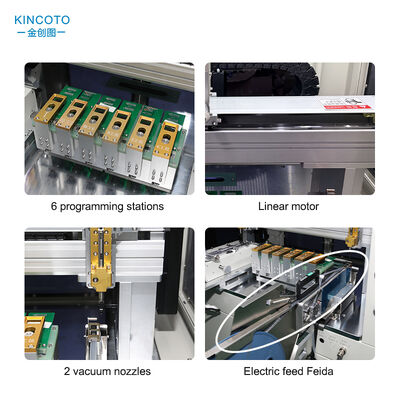

| Programmming station | 6 stations |
| Pick-and-place device | 2 vacuum nozzles |
| Monitor | 7"LCD |
| Pick and place accuracy | ±0.03MM |
| Control mode | PLC |
| programming mode | Lower pressure socket |
| Input voltage | AC220/50HZ |
| Air source | 0.4-0.6MPA |
| Toal weight | 257KG |
