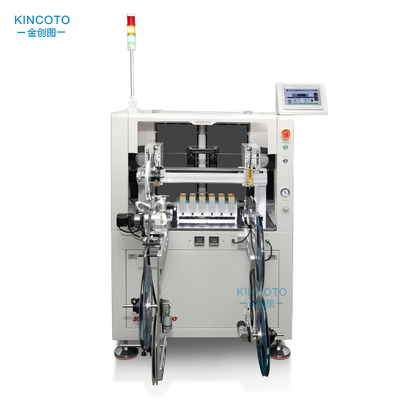

Automatic IC Programmer KA42-3000, Universal IC Burning Machine Support Tape, High Efficiency Chip Programming Device For Semiconductor Factory

Brand Name: Kincoto
Model Number: KA42-3000
MOQ: 1
Price: 12863
Payment Terms: T/T
Supply Ability: 10000
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong
Certification:
CE
Air Source:
0.4-0.6MPA
Feeding Device:
Standard 12-16MM Optional 8-32MM Feeder
Packaging Details:
Wood
Supply Ability:
10000
Product Description
  1. Support IC incoming materials to be packaged in tape and reel, enabling tape in and out, and automatically packaged after programming is completed.
  2. Production capacity 3500UPH, six programming stations, customized 1-6 programming stations to start, automatically distinguish OK and NG.
  3. High picking and placing accuracy, simple operation and easy to use.
  4. The programming plan can be stored, accessed for programming at any time, and the corresponding pro-gramming socket can be replaced by different packages.
  5. Stable transmission structure ensures smooth operation and effectively protects ICs from damage.Supports production data recording and statistics for process traceability and capacity management.

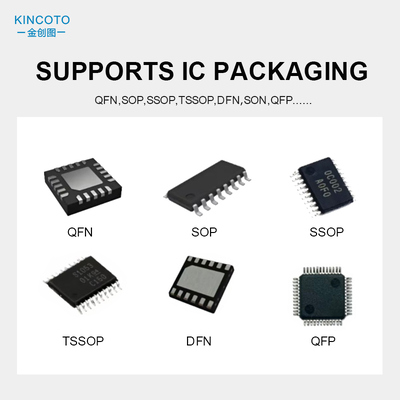

It supports a wide range of chip packages, including QFN, SOP, TSSOP,SON and QFP.

It's very convenient to program chips of different packages.

output efficiency 3500UPH
Overall size 950*580*1450mm
Supports ic packaging QFN/SOP/SSOP/TSSOP/SON/QFP.....

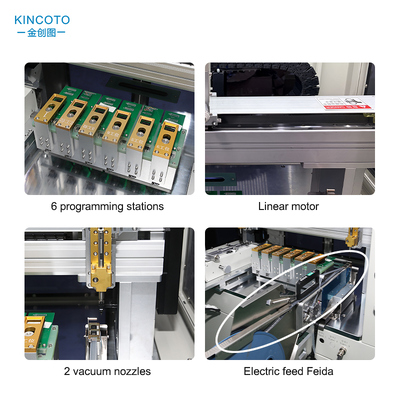

Programmming station 6 stations
Pick-and-place device 2 vacuum nozzles
Monitor 7"LCD
Pick and place accuracy ±0.03MM
Control mode PLC
programming mode Lower pressure socket
Input voltage AC220/50HZ
Air source 0.4-0.6MPA
Toal weight 257KG
