| Brand Name: | KINCOTO |
| Model Number: | KA42-3000 |
| MOQ: | 1 pcs |
| Price: | 13000USD / pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |

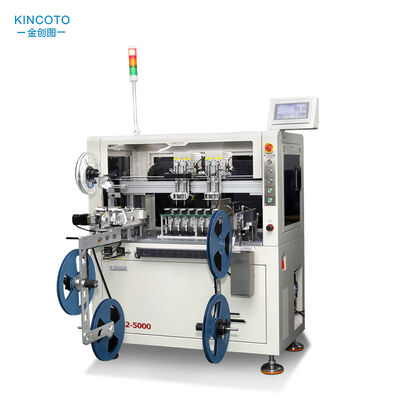

1.upport IC incoming materials to be packaged in tape and reel, enabling tape in and out, and automatically packaged after programming is completed.
2.Production capacity 3500UPH, six programming stations, customized 1-6 programming stations to start, automatically distinguish OK and NG.
3.High picking and placing accuracy, simple operation and easy to use.
4.The programming plan can be stored, accessed for programming at any time, and the corresponding pro-gramming socket can be replaced by different packages.
5.Stable transmission structure ensures smooth operation and effectively protects ICs from damage.
6.Supports production data recording and statistics for process traceability and capacity management.

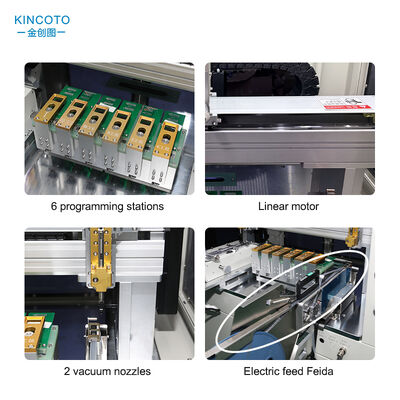

It can accommodate six programming sockets (the size of the programming sockets depends on the chip size). When replacing chips with different packages, for chips of the same brand, only the socket size needs to be changed. For different brands, only the programmer and programming socket need to be changed, which is simple and convenient.
A dot function can be added when the tape is woven out.(Red, blue, yellow, green, orange)
| Output efficiency | 3000UPH |
| Overall size | 950*1080*1450MM |
| Support IC packaging | QFN,SOP,QFP,SSOP,TSSOP.,SON..... |
| Programming station | 6 stations |
| Pick-and-place device | 2 vacuum nozzles |
| Control mode | PLC |
| X-axis | Linear motor |
| Feeding device | Standard 12-16MM optional 8-32MM Feeder |
| Discharging device | Adujstable automatic hot pressing film sealing device |
| Input voltage | AC220/50HZ |
| Power | 0.25KW |
| Air source | 0.4-0.6MPA |
| Total weight | 257KG |
