| Brand Name: | Kincoto |
| Model Number: | KR42-2500REV |
| MOQ: | 1 |
| Price: | 12100 |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
1.Support IC incoming materials packaging on trays and manual tray placement.
2.Support offline programmer.

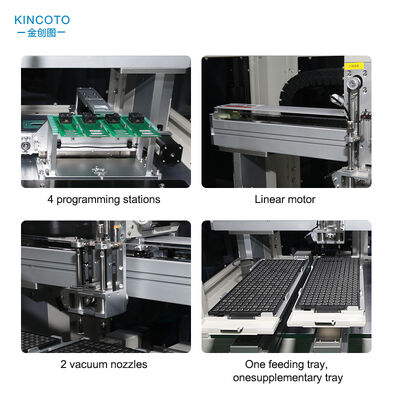

3.4 programming stations, 1-4 programming stations can be customized to start.
4.Plug in and use, pure electric, no gas source required.
It's very convenient to program different packages of tube-packed ICs.
It adopts a 12-tube feeding and 13-tube receiving structure, with automatic feeding, automatic detection and automatic sorting function. It can accommodate multiple programming sockets according to test requirements. When replacing chips of different packages, for chips of the same package type, only the programming socket needs to be replaced.
| output efficiency | 2500UPH |
| Host size | 1000+580-1450MM(Length.width and height) |
| Programmming station | 4 stations |
| Pick-and-place device | 2 vacuum nozzles |
| Monitor | 7"LCD |
| programming mode | Lower pressure socket |
| Input voltage | AC220/50HZ |
| Air source | 0.25MPA |
| Toal weight | 280KG |
