| Brand Name: | KINCOTO |

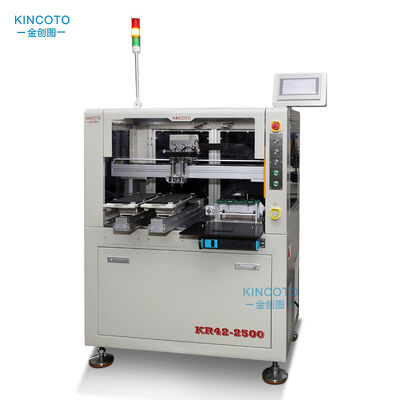

| Model Number: | KR42-2500REV |
| MOQ: | 1 pcs |
| Price: | 13000USD / pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
1.Support IC incoming materials packaging on trays and manual tray placement.
2.Support offline programmer.

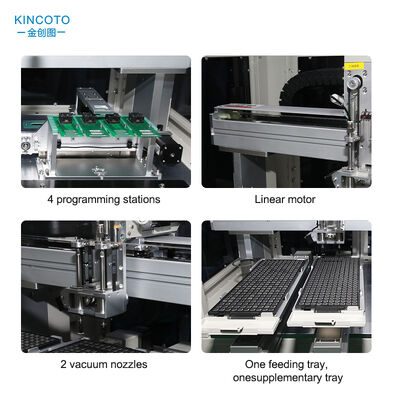

3.4 programming stations,1-4 programming stations can be customized to start.
4.Plug in and use,pure electricno gas source required.
It's very convenient to program to different packages.
It can accommodate four programming sockets (the size of the programming sockets depends on the chip size). When replacing chips with different packages, for chips of the same brand, only the socket size needs to be changed. For different brands, only the programmer and programming socket need to be changed, which is simple and convenient.
A dot function can be added when the tape is woven out.(Red, blue, yellow, green, orange)
| Output efficiency | 2500UPH |
| Overall size | 1000*730*1450MM |
| Support Ic packaging | QFP/QFN/SOP/BGA |
| Programming station | 4 stations |
| Pick-and-place device | 2 vacuum nozzles |
| Control mode | PLC |
| X-axis | Linear motor |
| Programming mode | Lower pressure socket |
| Tray | One feeding tray,one supplementary tray |
| Input voltage | AC220/50HZ |
| Power | 0.25KW |
| Total weight | 280KG |
