| Brand Name: | KINCOTO |
| Model Number: | KA42-5000 |
| MOQ: | 1 |
| Price: | 12145USD/set |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |

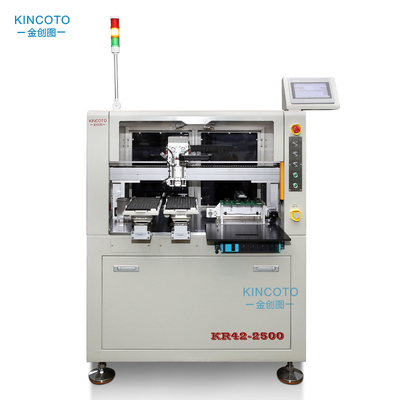

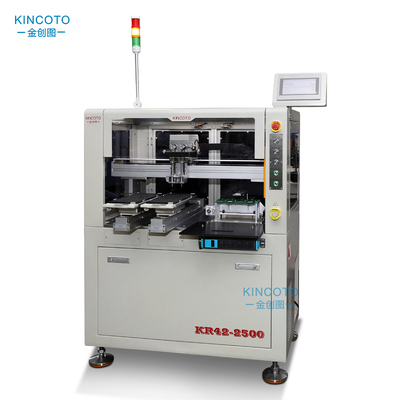

The KR42-2500REV is an electric-driven automatic tray IC programming machine – no air compressor or gas source required. Simply plug into a standard AC220V outlet and start programming.

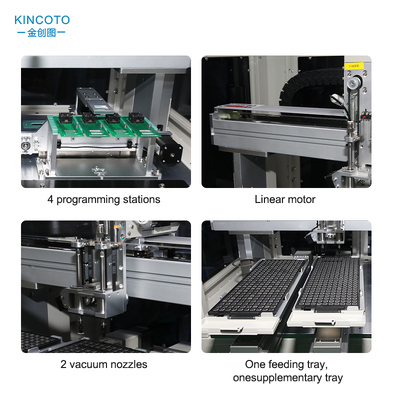

This model features 4 programming stations, 2 vacuum nozzles, and a linear motor on the X-axis, delivering 2500 UPH with ±0.03mm placement accuracy. It supports a wide range of IC packages including QFP, QFN, SOP, and BGA.
The machine works seamlessly with most offline programmers and is ideal for R&D labs, small-batch production, and facilities without compressed air lines.
Electric vs. Pneumatic: The KR42-2500REV uses an electric actuator to open and close the programming socket – no air needed. All other specifications (precision, speed, stations, software) are identical to our pneumatic version. Choose electric for easy setup, or pneumatic if you already have an air source. Both deliver the same reliable performance.
| Target Customers |
| SMT assembly factories |
| IC solution providers |
| IC distributors / agents |
| Consumer electronics EMS |
| Automotive electronics Tier 2/3 |
| Industrial control manufacturers |
| Programming service centers |
| # | Selling Point |
|---|---|
| 1 | No Air Source Required – Electric drive, plug-and-play. Perfect for labs, R&D centers, and factories without compressed air lines. |
| 2 | 2500 UPH Stable Output – 4 parallel programming stations for efficient batch production. |
| 3 | ±0.03mm High Precision – Linear motor drive ensures accurate placement for fine-pitch packages like QFP and BGA. |
| 4 | Tray Input / Tray Output – One feeding tray + one supplementary tray for continuous operation. |
| 5 | Supports Most Offline Programmers – Signal interface ready. Use your existing programmers. |
| 6 | Flexible Station Activation – 1-4 stations can be independently enabled. |
| 7 | Easy to Use – 7" LCD touchscreen, programmable settings can be stored and recalled. |
| 8 | Same Performance as Pneumatic Version – Only the socket drive differs. Choose based on your facility setup. |
| Parameter | Value |
|---|---|
| Model | KR42-2500REV |
| Drive Type | Electric (No air source required) |
| Output Efficiency | Up to 2500 UPH |
| Host Size (L×W×H) | 1000 × 580 × 1450 mm |
| Overall Size (L×W×H) | 1000 × 730 × 1450 mm |
| Supported IC Packages | QFP, QFN, SOP, BGA |
| Programming Stations | 4 stations (1-4 independently selectable) |
| Pick & Place Device | 2 vacuum nozzles |
| Monitor | 7" LCD |
| Pick & Place Accuracy | ±0.03 mm |
| Control Mode | PLC |
| X-axis Drive | Linear motor |
| Programming Mode | Down-pressure socket (electric drive) |
| Tray System | One feeding tray + one supplementary tray |
| Input Voltage | AC220V / 50Hz |
| Power Consumption | 0.25 KW |
| Total Weight | 280 KG |

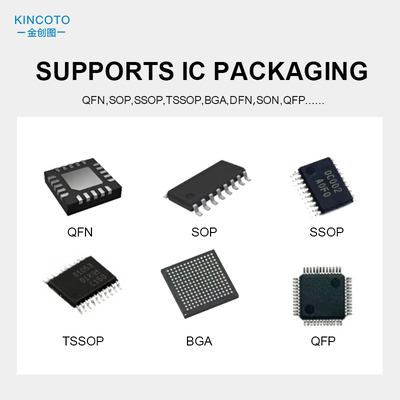

QFP (Quad Flat Package)
QFN (Quad Flat No-lead)
SOP (Small Outline Package)
BGA (Ball Grid Array)
Other packages available upon request
The KR42-2500REV works seamlessly with most mainstream offline programmers, including:
Sofi-tech, SinoMCU, Holychip, Holtek, Sonix, Elan, Nyquest, PADAUK, Hyundai, SinoWealth, Airoha Technology, JIELI Technology, Buildwin, CT-UNITE, NATION, and more.
Other programmers can be supported upon request.
| Feature | Electric Version (KR42-2500REV) | Pneumatic Version |
|---|---|---|
| Air Source Required | ❌ No | ✅ Yes (0.4-0.6 MPA) |
| Installation | Plug & play | Requires air compressor & lines |
| Performance | Same (2500 UPH, ±0.03mm) | Same |
| Programming Stations | 4 stations | 4 stations |
| Pick & Place Accuracy | ±0.03mm | ±0.03mm |
| Supported Packages | QFP/QFN/SOP/BGA | QFP/QFN/SOP/BGA |
| Best For | Labs, R&D, small factories without air lines | Large factories with existing air infrastructure |
| Customer Type | Why KR42-2500REV Fits |
|---|---|
| R&D Labs / Engineering Teams | No air source needed – just plug into any outlet. Perfect for prototype and small-batch programming. |
| IC Solution Providers | Tray in/tray out operation supports QFP/BGA packages common in professional solutions. |
| Small to Medium SMT Lines | Ideal for facilities without compressed air lines. |
| Universities / Training Centers | Easy setup, low maintenance, perfect for teaching and learning. |
| Programming Service Centers | Reliable, precise, and easy to operate for daily programming tasks. |
✅ No air compressor required – electric drive for easy installation
✅ 2500 UPH stable output – 4 stations parallel programming
✅ ±0.03mm high precision – linear motor for accurate placement
✅ Supports QFP/QFN/SOP/BGA – wide package compatibility
✅ Works with most offline programmers – use your existing equipment
✅ 7" LCD touchscreen – simple operation
✅ Same performance as pneumatic version – choose by your facility setup
