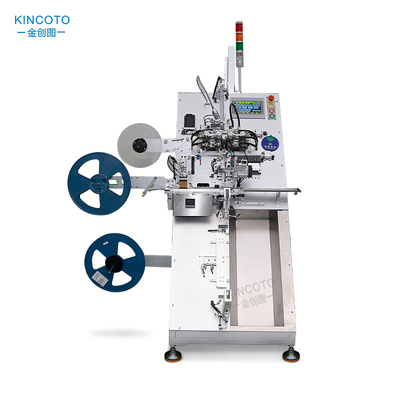

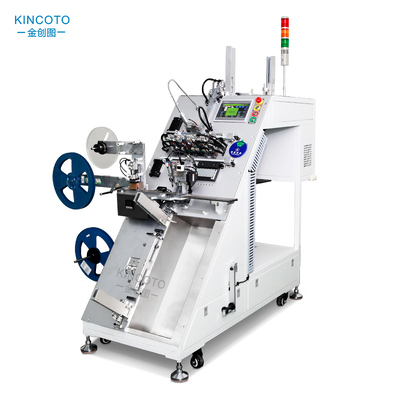

| Brand Name: | KINCOTO |
| Model Number: | KU8000A |
| MOQ: | 1 pcs |
| Price: | 25000USD/PCS |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |

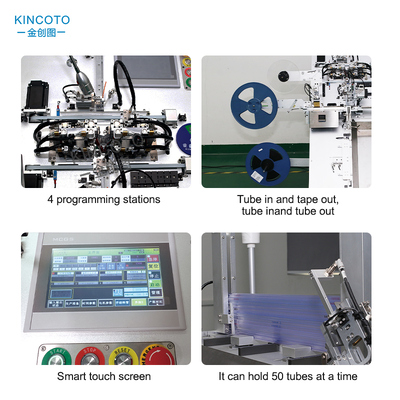

Core Advantages
1. Large Storage Feeding Rack
Feed area holds up to 50 chip tubes; refill materials anytime without stopping production.
2. Long-life Gold Finger Contact
Gold-finger programming contact supports up to 3 million hits to cut consumable cost.
3. Auto OK/NG Sorting
Automatically separate passed & failed ICs into respective OK/NG tubes after programming.
4. Wide Programmer Compatibility
Works with self-made offline programmers plus Holtek, Sonix, ELAN, PADAUK, JIELI and other mainstream brands.
5. Built-in AOI Vision Check
AOI camera inspects IC orientation & appearance to reject abnormal components in advance.
6. Stable Continuous Operation
Low failure rate for long-hour non-stop mass production.
7. Compact & Line Compatible
Space-saving design, easy to link with automatic production lines for high-volume manufacturing.
8. Dual-inspection Quality Control
Dual detection + auto sorting prevents defective ICs from entering next process to improve yield.
Application
Ideal for SMT, PCBA, automotive electronics, IoT and semiconductor manufacturers.
Parameter
| Output efficiency | 3500UPH |
| Overall size | 950*1080*1450MM |
| Support IC packaging | QFN,SOP,QFP,SSOP,TSSOP,SON..... |
| Programming station | 6 stations |
| Pick-and-place device | 2 vacuum nozzles |
| Control mode | PLC |
| X-axis | Linear motor |
| Feeding device | Standard 12-16MM optional 8-32MM Feeder |
| Discharging device | Adujstable automatic hot pressing film sealing device |
| Input voltage | AC220/50HZ |
| Power | 0.25KW |
| Air source | 0.4-0.6MPA |
| Total weight | 257KG |
