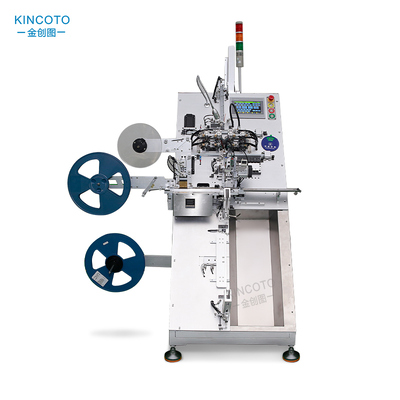

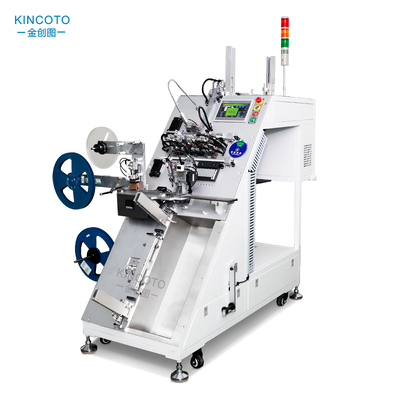

KU8000A Tube to Tape IC Programming Machine 8000UPH 4 Station Automatic IC Burner for SOP SSOP

Brand Name:	KINCOTO
Model Number:	KU8000A
MOQ:	1 pcs
Price:	25000USD/PCS
Payment Terms:	T/T
Supply Ability:	10000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

wooden box package

Supply Ability:

10000

Product Description

1. The feeding area can stack 50 tubes containing chips, and feed materials can be added at will without affecting production.
2. Golden finger contact programming, lifespan can reach 3 million times.
3. When the programming is completed, OK and NG materials are automatically distinguished and placed in the OK tube or NG tube accordingly.
4. Support programmer: offline programmer (self-made programmer, SFLY, Holtek, Sonix, ELAN, Nyquest,PADAUK, Hyundai, SinoWealth, Airoha Technology, JIELI Technology, Buildwin, CT-UNITE, NATiON....)
5. Equipped with AOI visual inspection, accurately detect IC direction and appearance.
6. High stability and low failure rate, suitable for long-term continuous production.
7. Compact structure and stable performance, seamlessly compatible with automated production lines to meet the demands of large-scale and high-efficiency electronic manufacturing.
8. Dual inspection + automatic sorting mechanism effectively prevents defective products from entering the next process, improving overall product quality.

Parameter

Output efficiency	8000UPH
Host size	170013001760mm
Supports ic packaging	SOP150/SSOP150/SOP210/MSOP8......

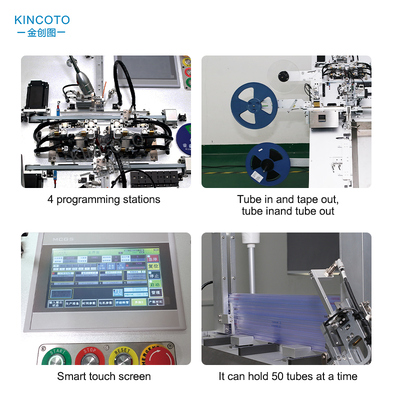

Programming station	4 stations(golden finger)
Air humidity	20-95%(no condensation)
Feeding mode	Automatic feeding,can put 50 tubes
Receiving method	Automatic feeding,can put 50 tubes
Pick and place accuracy	0.05mm
Programming mode	PLC
Test fixture	Golden finger,lives about 3 million times
Input voltage	AC220V/50 HZ
Air source	0.4-0.6MPA
Power	0.4KW
Total weight	190KG
