| Brand Name: | KINCOTO |
| Model Number: | KU8000A |
| MOQ: | 1 pcs |
| Price: | 25000USD/PCS |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
1.The feeding area can stack 50 tubes containing chips, and feed materials can be added at will without affecting production.
2.Golden finger contact programming, lifespan can reach 3 million times.
3.When the programming is completed, OK and NG materials are automatically distinguished and placed in the OK tube or NG tube accordingly.
4.Support programmer: offline programmer (self-made programmer, SFLY, Holtek, Sonix, ELAN, Nyquest,PADAUK, Hyundai, SinoWealth, Airoha Technology, JIELI Technology, Buildwin, CT-UNITE, NATiON....)
5.Equipped with AOI visual inspection, accurately detect IC direction and appearance.
6.High stability and low failure rate, suitable for long-term continuous production.
7.Compact structure and stable performance, seamlessly compatible with automated production lines to meet the demands of large-scale and high-efficiency electronic manufacturing.
8.Dual inspection + automatic sorting mechanism effectively prevents defective products from entering the next process, improving overall product quality.
| Output efficiency | 8000UPH |
|---|---|
| Host size | 1700*1300*1760mm |
| Supports ic packaging | SOP150/SSOP150/SOP210/MSOP8...... |

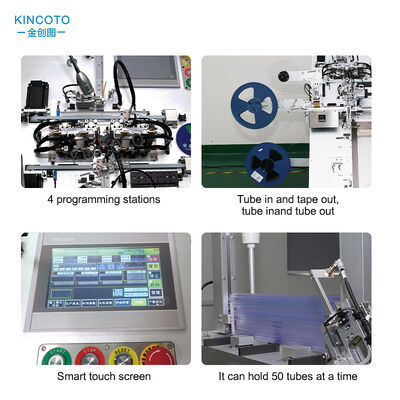

| Programming station | 4 stations(golden finger) |
| Air humidity | 20-95%(no condensation) |
| Feeding mode | Automatic feeding,can put 50 tubes |
| Receiving method | Automatic feeding,can put 50 tubes |
| Pick and place accuracy | 0.05mm |
| Programming mode | PLC |
| Test fixture | Golden finger,lives about 3 million times |
| Input voltage | AC220V/50 HZ |
| Air source | 0.4-0.6MPA |
| Power | 0.4KW |
| Total weight | 190KG |
