| Brand Name: | KINCOTO |
| Model Number: | KA42-3000 |
| MOQ: | 1 |
| Price: | 17551~20000USD/set |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |

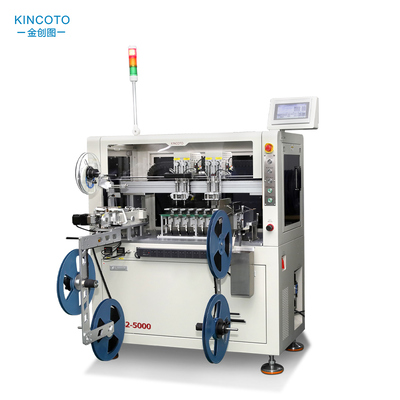

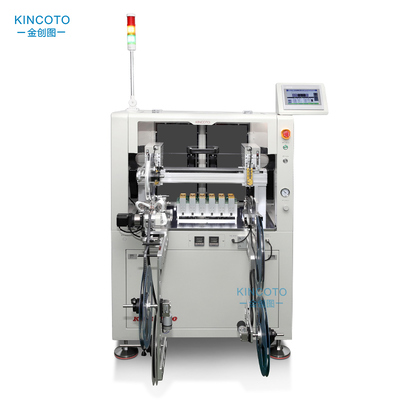

KA42-3000 – Automatic Tape Programming Machine

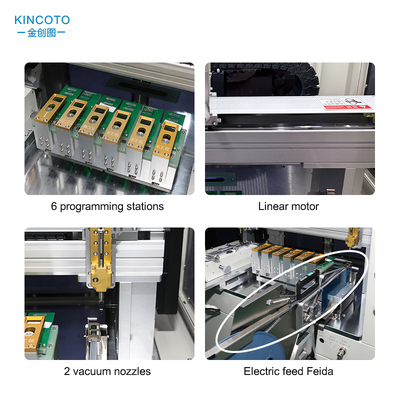

The KA42-3000 is a high-performance automatic tape programming machine designed for tape in, tape out (reel to reel) mass production programming. Equipped with a linear motor drive, 6 programming stations, and 2 vacuum nozzles, it achieves up to 3500 UPH, making it ideal for high-volume tape IC programming where both throughput and precision are critical.

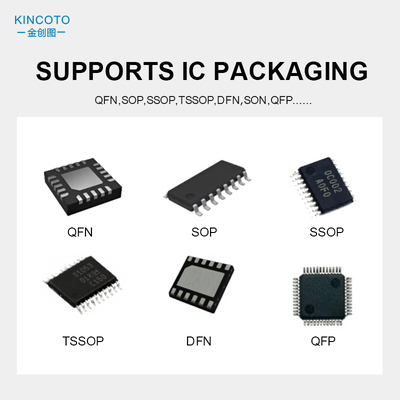

It supports QFN, SOP, SSOP, TSSOP, SON, QFP packages, with a standard feeder for 12-16mm tape width (optional 8-32mm, custom widths available).
| Key Features | |
| Feature | Description |
| High Throughput | 3500 UPH, 6 parallel stations (1-6 stations flexible) |
| High Precision | ±0.03mm repeatability, linear motor on X-axis |
| Fully Automatic | Tape in/tape out, auto peel & auto hot-pressing sealing |
| Wide Compatibility | Supports QFN/SOP/SSOP/TSSOP/SON/QFP |
| Easy Operation | 7" LCD touchscreen, programmable & storable settings |
| Stable and Durable | Weighing 257 kg, the complete unit features a robust structure suitable for 24-hour continuous operation. |
| Target Customers |
| SMT assembly factories |
| IC solution providers |
| IC distributors / agents |
| Consumer electronics EMS |
| Automotive electronics Tier 2/3 |
| Industrial control manufacturers |
| Programming service centers |
| Technical Specifications | |
| Parameter | Value |
| Model | KA42-3000 |
| Output Efficiency | Up to 3500 UPH |
| Host Size (L×W×H) | 950 × 580 × 1450 mm |
| Overall Size (L×W×H) | 950 × 1080 × 1450 mm |
| Supported Packages | QFN/SOP/SSOP/TSSOP/SON/QFP |
| Programming Stations | 6 stations (1-6 independently selectable) |
| Pick & Place Device | 2 vacuum nozzles |
| Monitor | 7" LCD |
| Pick & Place Accuracy | ±0.03 mm |
| Control Mode | PLC |
| Programming Mode | Down-pressure socket |
| X-axis Drive | Linear motor |
| Feeder (Incoming) | Standard 12-16mm, optional 8/24/32mm |
| Discharging (Outgoing) | Automatic hot-pressing sealing (tape out) |
| Input Voltage | AC220V / 50Hz |
| Power Consumption | 0.25 KW |
| Air Source | 0.4-0.6 MPA |
| Total Weight | 257 KG |
