| Brand Name: | KINCOTO |
| Model Number: | KU8000A |
| MOQ: | 1 pcs |
| Price: | 20980 USD/ pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
Features
1.Non-stop Material Supply
Large tube storage capacity allows material replenishment without suspending production.
2.Long Service Life Components
Wear-resistant gold finger contacts ensure long-term use and low upkeep cost.
3.Intelligent Classification
Auto sorting distinguishes good and faulty chips for unmanned workflow.
4.Wide Model Compatibility
Fits most mainstream offline programmers from different manufacturers.
5.Visual Defect Check
AOI system verifies chip placement and appearance to avoid operational risks.
6.Reliable Continuous Running
Optimized structure enables stable operation for non-stop mass production.
7.Easy Line Integration
Compact structure saves space and connects well with automated production lines.
8.Strict Quality Control
Double inspection blocks defective goods and lowers production waste.
Parameter
| Output efficiency | 8000UPH |
| Host size | 1700*1300*1760mm |
| Supports ic packaging | SOP150/SSOP150/SOP210/MSOP8...... |

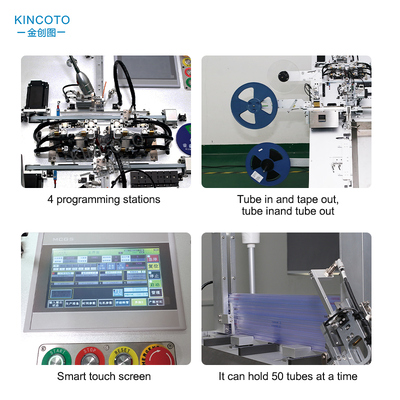

| Programming station | 4 stations(golden finger) |
| Air humidity | 20-95%(no condensation) |
| Feeding mode | Automatic feeding,can put 50 tubes |
| Receiving method | Automatic feeding,can put 50 tubes |
| Pick and place accuracy | 0.05mm |
| Programming mode | PLC |
| Test fixture | Golden finger,lives about 3 million times |
| Input voltage | AC220V/50 HZ |
| Air source | 0.4-0.6MPA |
| Power | 0.4KW |
| Total weight | 190KG |
