| Brand Name: | KINCOTO |
| Model Number: | KA2000 |
| MOQ: | 1 |
| Price: | 33,571-35,250USD/set |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |

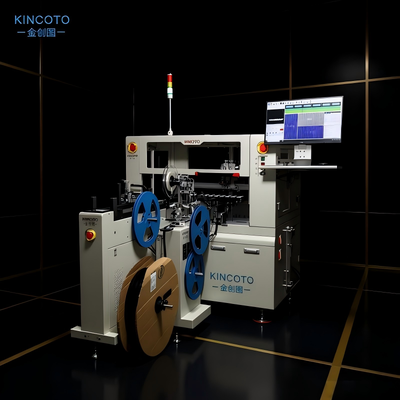

The KA2000 is an automatic IC programming machine specifically designed for both tray and tape operations. It is an ideal solution for high-volume production lines requiring efficient, reliable, and fully automated chip burning with maximum flexibility.
This model features 12 programming stations, dual vacuum nozzles (pick and place), upper and lower CCD visual alignment, and supports a wide range of IC packages including QFP, QFN, SOP, and BGA. With a maximum output of 2000-2500 UPH, it significantly improves programming efficiency while reducing manual labor.
The KA2000 supports four operation modes:
Tape In / Tape Out
Tape In / Tray Out
Tray In / Tape Out
Tray In / Tray Out
This flexibility makes it the perfect choice for EMS companies, semiconductor service providers, and manufacturers who handle mixed incoming and outgoing packaging formats.
| Parameter | Details |
|---|---|
| Model | KA2000 |
| Output Efficiency | 2000 – 2500 UPH |
| Programming Stations | 12 stations (flexible activation) |
| Pick & Place Device | 2 vacuum nozzles |
| Supported IC Packages | QFP, QFN, SOP, BGA |
| Pick & Place Accuracy | ±0.03mm |
| Control Mode | Motion control card |
| X-axis Drive | Linear motor (high speed, high precision, low wear) |
| Programming Mode | Down-pressure socket |
| Positioning System | Upper and lower CCD vision |
| Tray Loading/Unloading | Automatic disk feeding device – up to 20 trays |
| Feeder (Incoming - Tape) | Standard 12-16mm, optional 8mm / 24mm / 32mm (custom widths available) |
| Discharging (Outgoing) | Adjustable automatic hot-pressing film sealing device (tape out) |
| Monitor | 19" LCD |
| Optional Functions | Dot marking / AOI inspection / laser marking (contact for recommendation) |
| Power Supply | AC220V / 50Hz |
| Power Consumption | 1.3KW |
| Air Source | 0.4-0.6 MPA |
| Host Dimensions (L×W×H) | 1200 × 950 × 1365 mm |
| Overall Dimensions (L×W×H) | 1690 × 1800 × 1600 mm |
| Total Weight | 600 KG |
The KA2000 supports four operation modes in one machine:
Tape In → Tape Out
Tape In → Tray Out
Tray In → Tape Out
Tray In → Tray Out
This flexibility allows you to adapt to different incoming IC packaging (tape or tray) and output requirements (tape or tray) without purchasing multiple machines.
Equipped with a linear motor on the X-axis, the KA2000 delivers:
Higher speed and smoother motion compared to lead screw systems
±0.03mm placement accuracy
Lower mechanical wear and longer service life
Reduced maintenance requirements
12 programming stations for parallel burning
Each station can be turned on/off independently according to production needs
Dramatically increases throughput for high-volume production
Can connect to multiple offline programmers simultaneously
Dual CCD cameras (upper and lower) for precise positioning
Real-time image processing calculates X/Y/θ deviation
Automatic position correction before placement
Essential for fine-pitch packages like QFP and BGA
2 vacuum nozzles work efficiently for high-speed operation
Gentle handling of delicate ICs
Anti-drop design prevents chip damage during power failure
Automatic tray loading/unloading system
Supports up to 20 trays at once
Minimizes manual intervention and maximizes continuous operation time
Compatible with QFP, QFN, SOP, BGA
Suitable for both standard and fine-pitch packages
Ideal for mixed production environments
Dedicated NG collection area for rejected chips
Optional AOI inspection system for pre/post programming visual inspection (detects bent pins, reversed orientation, missing components)
Optional dot marking for traceability (colors: white, red, blue, green, yellow)
Down-pressure sockets are easy to replace
Linear motor requires less maintenance than traditional screw drives
Clear video tutorials and documentation provided
The KA2000 is designed for easy integration with most offline programmers. The standard signal interface allows communication between the machine and the programmer for start, stop, OK/NG judgment, and other production control functions.
Detailed signal pin assignment diagram available upon request.
Free repair or replacement for quality-related issues within 1 year
Technical support during operation (remote assistance available)
Consultation services for product usage, maintenance, and optimization
| Package Type | Examples |
|---|---|
| QFP | QFP64, QFP100, QFP144, etc. |
| QFN | QFN32, QFN48, etc. |
| SOP | SOP8, SOP16, SOP20, etc. |
| BGA | BGA packages |
| Others | Available upon request |
The KA2000 works seamlessly with most mainstream offline programmers, including:
Sofi-tech, SinoMCU, Holychip, Holtek, Sonix, Elan, Nyquest, PADAUK, Hyundai, SinoWealth, Airoha Technology, JIELI Technology, Buildwin, CT-UNITE, NATION, and more.
Other programmers can be supported upon request.
| Customer Need | KA2000 Solution |
|---|---|
| Mixed tape & tray incoming/outgoing | 4-in-1 operation modes – supports any combination |
| High-volume production | 12 programming stations, 2000-2500 UPH |
| Multiple IC types (QFP, QFN, SOP, BGA) | Wide package compatibility |
| Precision placement for fine-pitch ICs | ±0.03mm accuracy with linear motor drive |
| Need for high positioning accuracy | Upper & lower CCD vision for real-time alignment |
| Long hours of continuous operation | 20-tray capacity + high durability linear motor |
| Quality control & traceability | Optional AOI + dot marking |
| Easy integration with existing programmers | Supports most offline programmers |
| # | Selling Point |
|---|---|
| 1 | 12 Programming Stations – Highest station count in its class. Parallel programming maximizes throughput for long-programming-time chips |
| 2 | 4-in-1 Operation Modes – Tape in/tape out, tape in/tray out, tray in/tray out, tray in/tape out. One machine for all packaging combinations |
| 3 | ±0.03mm High Precision – Linear motor drive ensures accurate placement for fine-pitch packages like QFP, QFN, and BGA |
| 4 | Upper & Lower CCD Vision – Dual-camera alignment system for real-time position correction. Essential for QFP/BGA packages |
| 5 | 20-Tray Automatic Loading System – Load up to 20 trays at once for hours of unattended continuous operation |
| 6 | 12 Stations + 2 Nozzles – Optimized for chips with long programming time. 12 parallel stations keep production running smoothly |
| 7 | Offline Programmer Compatible – Standard signal interface works with most mainstream offline programmers |
| 8 | Wide Package Support – Compatible with QFP, QFN, SOP, BGA, and more |
| 9 | 19" LCD Touchscreen – Easy to use. Store and recall programming settings. Real-time OK/NG count recording |
| 10 | Optional Dot Marking – For chip traceability and post-programming identification |
| 11 | Heavy-Duty Construction – 600KG stable platform for 24/7 continuous operation |
Shenzhen Kingcoto Electronic Equipment Co., Ltd. (abbreviated as KINCOTO), founded on November 22, 2009, is an automated equipment manufacturing enterprise integrating R&D, sales, production, and service. It provides comprehensive solutions for chip manufacturers, solution companies, chip agents, and programming factories, specializing in the production of tube programmers, tape programmers, tray programmers, and combined tape-and-reel/tray programmers.
With a focus on independent R&D, an efficient sales team, and competitive pricing, the company follows a brand-oriented development model, adhering to customer and market demands to achieve win-win cooperation. It has now established significant corporate scale, product advantages, and brand recognition. The factory covers an area of 10,000 square meters, employs over 100 staff, with R&D personnel accounting for more than 20%.
The company possesses an intellectual property management system, proprietary trademarks, ISO9001 quality management system certification, ISO14000 environmental management system, after-sales service certification, and holds over 90 national patent certificates.
Since its establishment, the company has been honored with multiple titles, including "National High-Tech Enterprise," "Innovative Enterprise," and "Specialized, Refined, Distinctive, and Innovative (SRDI) Enterprise." Its products are exported to over 40 countries, including the United States, France, Italy, Spain, India, South Korea, Russia, Brazil, Turkey, and Vietnam.
Answer: With over 20 years of experience in IC programming machines, we have a professional technical team to provide you with the best and most cost-effective solution. Our efficient after-sales service team has earned a strong reputation among our customers. Win-win long-term cooperation is our lifetime goal!
Answer: We accept T/T (bank transfer), L/C, Western Union, and PayPal. For the first cooperation, we usually require a 50% deposit and 50% balance before shipment. For regular customers, terms are negotiable.
Answer: For standard models (like KA8E, 1213D, KU8000S), the delivery time is around 3-7 working days. For non-standard or customized models, it usually takes 15-25 working days depending on the configuration.
Answer: All machines come with a 1-year warranty (excluding consumable parts such as programming sockets and probes). After the warranty period, we still provide lifetime technical support and spare parts at the lowest cost. Any problems, just contact us – we will guide you to fix it remotely or send replacement parts.
Answer: Quality and service are our foundation. Our company was founded in 2003 and has over 20 years of experience. All equipment is CE certified and produced under ISO9001 quality management standards. Our quality is assured and approved by customers worldwide.
Answer: We are a direct factory with our own R&D, production, and sales team. You are always welcome to visit our 10,000m² facility in Shenzhen.
Answer: No, it depends on the chip package and packaging (tube, tape, or tray). Please send us your chip datasheet, and we will recommend the most suitable model for your chip.
Answer: Simply send us the chip specifications (datasheet or clear photos of the chip package) and we will confirm compatibility and recommend the right solution.

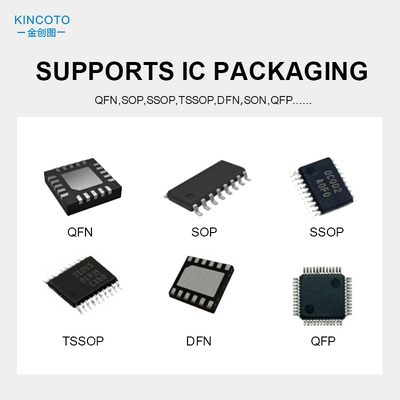

Answer: We support a wide range of packages, including:
SOP8, SOP16, SOP150, SOP210
SSOP, TSSOP, SON
QFN, QFP, BGA
DIP300 and more
Answer: Yes. Our automation machines (such as KA1800, KA2000, and KU8000S series) are designed to work with most mainstream offline programmers. Please let us know your programmer brand and model, and we will confirm the signal interface compatibility.
Answer: Yes. We have a dedicated R&D team that supports non-standard customization – including track width, programming socket, vision system, and even full machine structure based on your specific chip and production needs.
Answer: We ship by air, sea, or express (DHL/FedEx/UPS) according to your request. All machines are packed in a strong wooden case (plywood or solid wood with fumigation certificate) to ensure safe delivery.
Answer: Yes. We provide English manuals, video tutorials, and remote technical support. For large orders or specific customer requests, we can also arrange online training via video call.
Answer: Yes. We welcome you to visit our factory in Shenzhen. For customers who cannot visit, we can provide a live video demo showing the machine running with your chips.
