| Brand Name: | KINCOTO |
| Model Number: | KA1800 |
| MOQ: | 1 pcs |
| Price: | 33120 USD / pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
1.Support IC incoming packaging in tape and reel,tray, automatic loading.
2.Equipped with CCD visual positioning system and supports offline programmer.

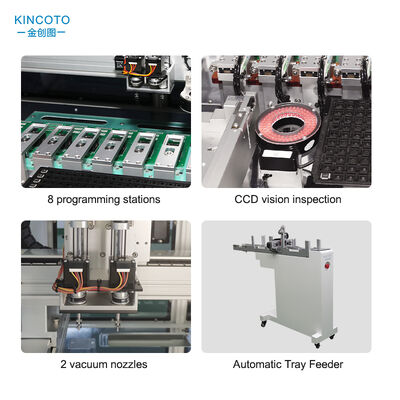

3.Eight programming stations,1-8 programming stations can be customized to start.
4.Optional dotting function,simple and convenient operation,easy to use.
5.Drop-in programming sockets for easy and simple operation; different sockets can be pre-loaded as needed, offering flexibility and reducing changeover time. Achieves a throughput of up to 1800 UPH. High equipment compatibility.
6.MES system integration.
It can accommodate eight programming sockets (the size of the programming sockets depends on the chip size). When replacing chips with different packages, for chips of the same brand, only the socket size needs to be changed. For different brands, only the programmer and programming socket need to be changed, which is simple and convenient.
A dot function can be added when the tape is woven out.(Red, blue, yellow, green, orange)
| Output efficiency | 1800-2000UPH |
|---|---|
| Overall size | 1550*1800*1600MM |
| Support IC packaging | QFP/QFN/SOP/BGA |
| Programming station | 8 stations |
| Pick-and-place device | 2 vacuum nozzles |
| Control mode | motion control card |
| X-axis | Linear motor |
| Programming mode | Lower pressure socket |
| Positioning system | CCD(optional) |
| Tray | Automatic tray device,NG tray |
| Tape with feeder | Tape device,Feeder standard 12-16mm optional 8-32mm |
| Input voltage | AC220/50HZ |
| Power | 0.3KW |
| Air source | 0.4-0.6MPA |
| Total weight | 450KG |
