Production Line Overview
Our company has built an integrated production line based on CNC precision machining, with automated programming as its core, and whole-machine assembly and intelligent inspection as safeguards. This line is dedicated to the R&D and manufacturing of programming equipment and IC programming services, providing high-precision, high-stability, and highly adaptable programming solutions for sectors such as consumer electronics, automotive electronics, industrial control, the Internet of Things (IoT), and medical electronics.

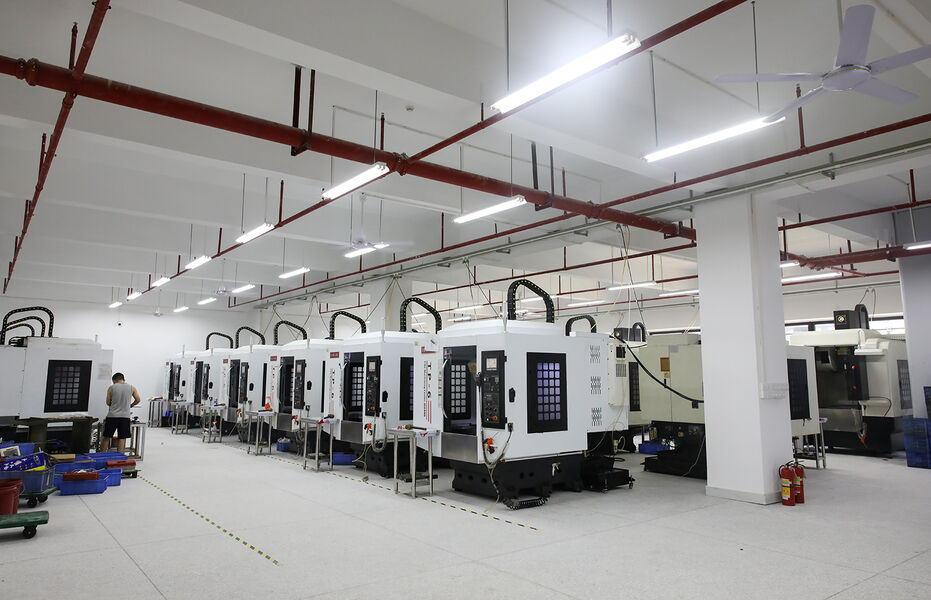

I. CNC Precision Machining Line (In-House Manufacturing of Core Programming Machine Components)
As the quality foundation for programming machines, the CNC precision machining line focuses on the in-house production of core structural components, ensuring precision and quality through full-process control from raw materials to finished parts.
1. Raw Material Feeding: High-quality materials such as aluminum alloy, stainless steel, and engineering plastics are used. Automatic feeding, dimensional inspection, and precise positioning are performed to ensure a unified machining benchmark.
2. Precision Machining: Utilizing multi-axis CNC machines, core components such as programming sockets, machine frames, fixtures, and transmission structures are machined with a precision of up to ±0.005mm, guaranteeing programming contact stability and operational accuracy.
3. Surface Treatment: Processes such as sandblasting, anodizing, passivation, and coating enhance the components' wear resistance, corrosion resistance, and anti-interference properties, making them suitable for industrial and automotive-grade applications.
4. Quality Inspection: Multi-dimensional quality inspection, including CMM measurement, hardness testing, and full visual inspection, ensures component consistency and reliability, preventing defective parts from entering the assembly stage.

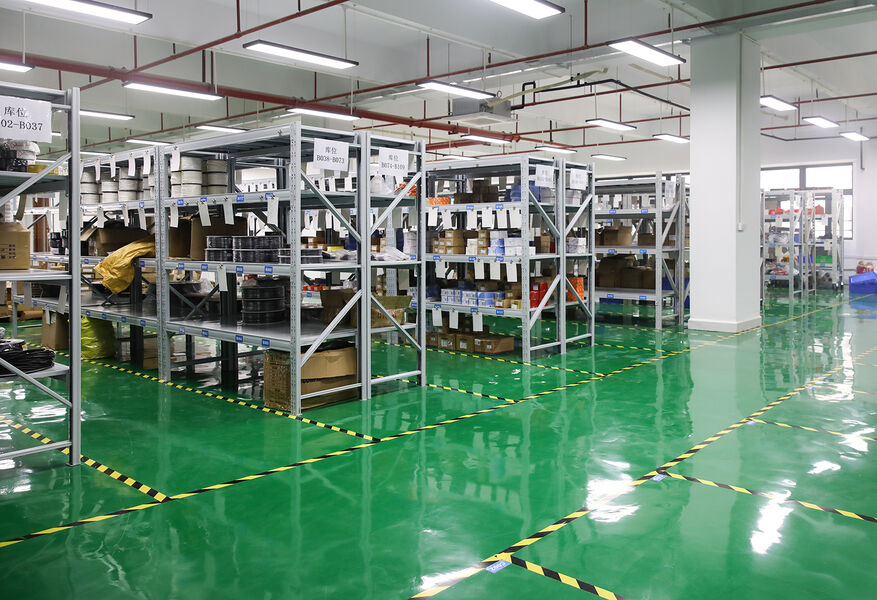

5. Warehousing Management: Qualified components are scanned into inventory, and material traceability records are established, providing precise material support for whole-machine assembly.

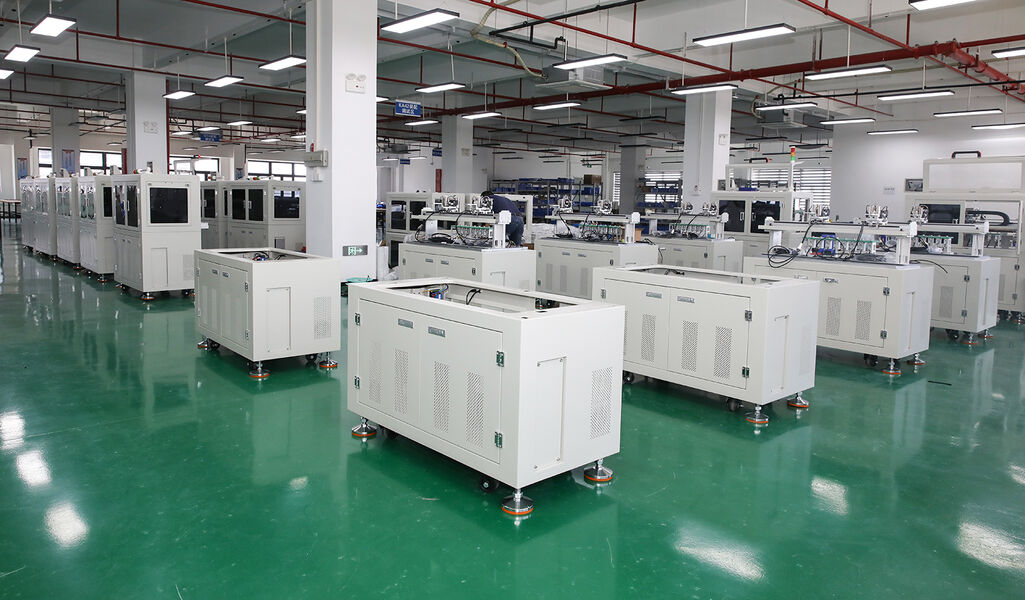

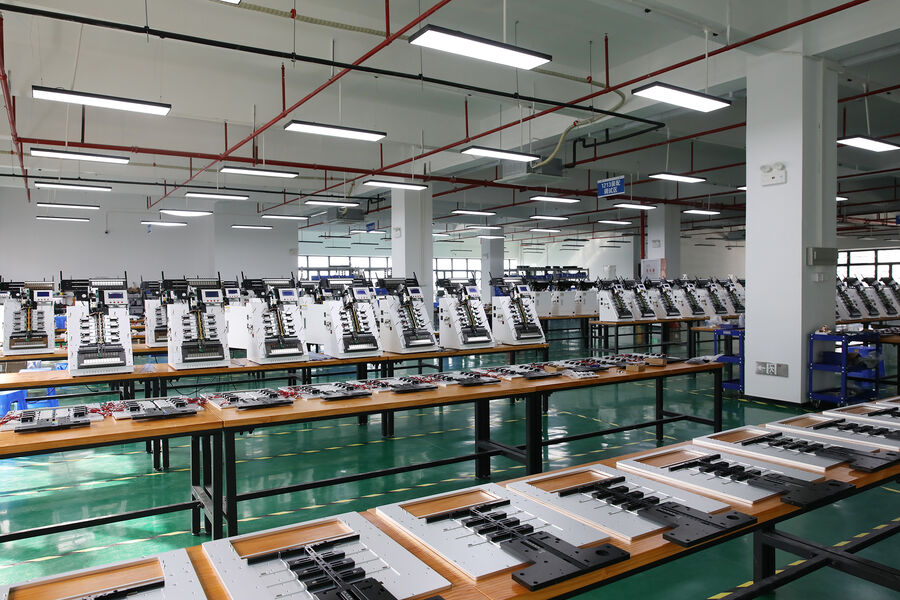

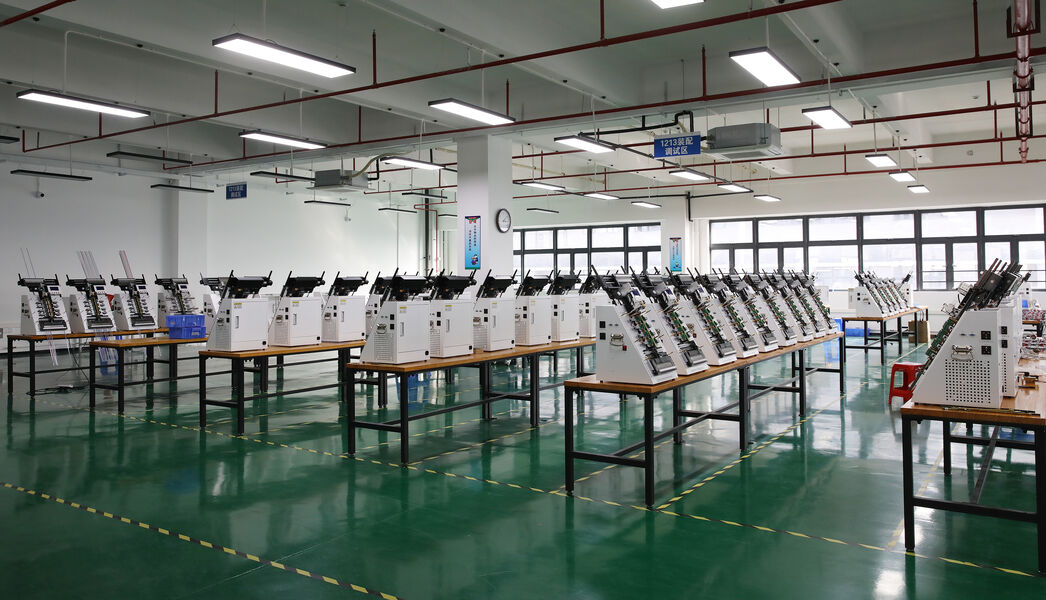

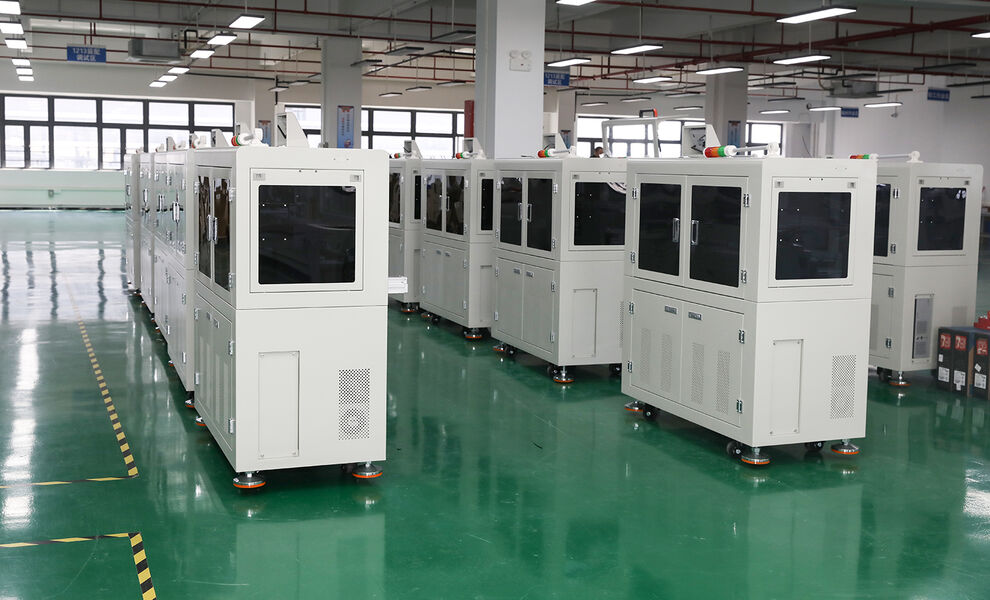

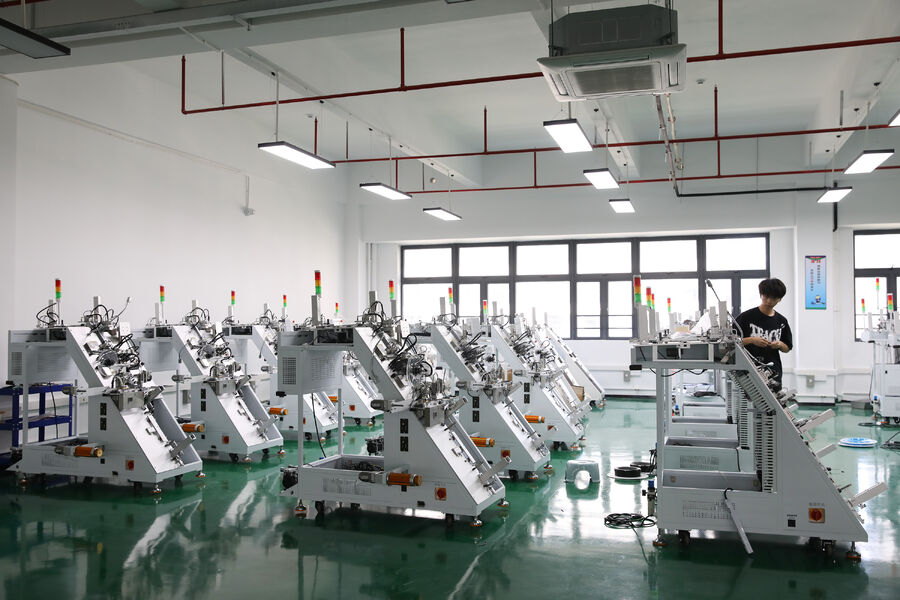

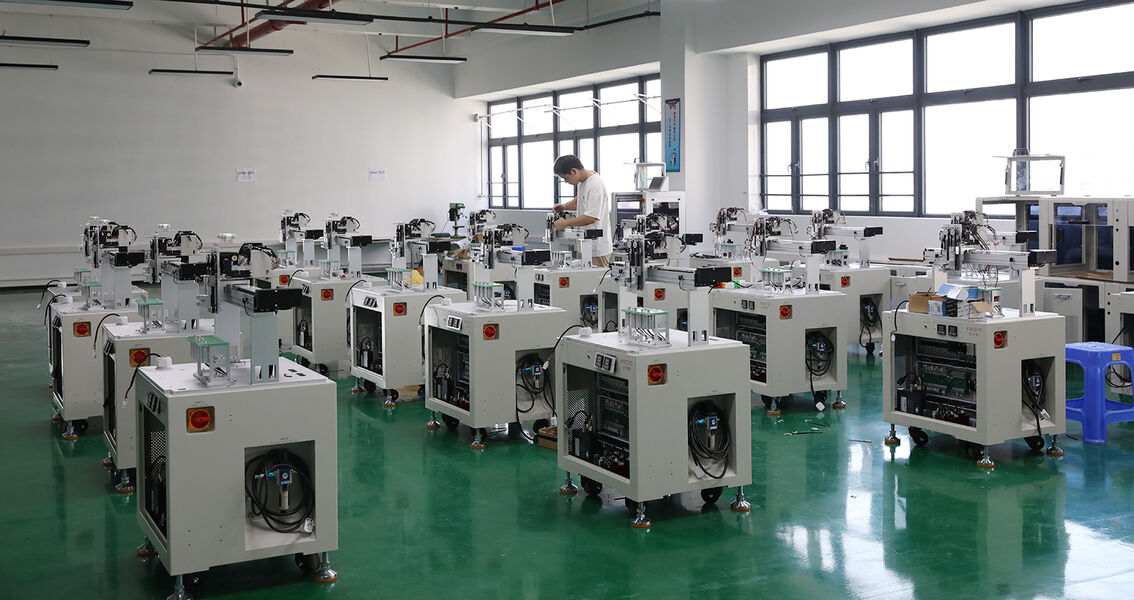

II. Whole-Machine Assembly and Debugging Line (Programming Machine Manufacturing)
This line integrates CNC-machined core components, electronic parts, and transmission systems to complete standardized assembly and comprehensive debugging of programming machines, ensuring stable equipment performance.
1. Precision Assembly: Assembly of structural components, electrical parts, and transmission modules is carried out according to process standards to ensure operational accuracy and sealing integrity.

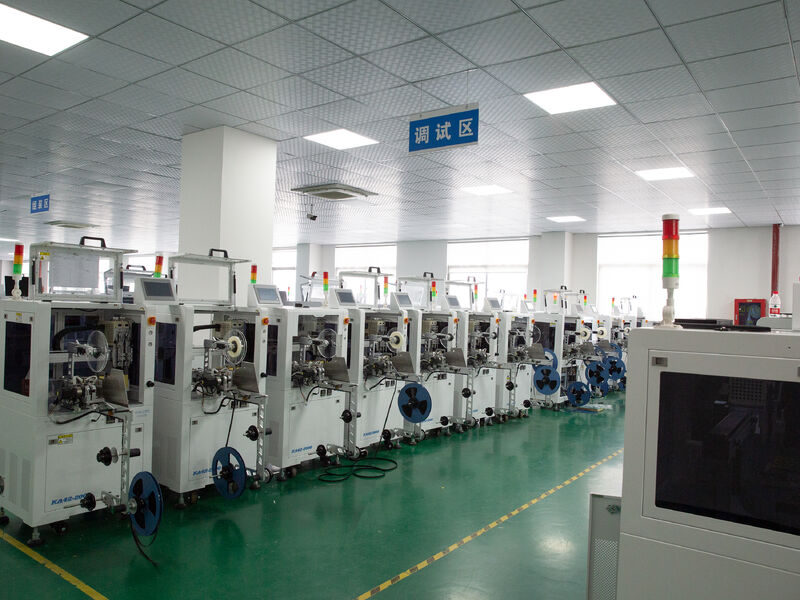

2. Electrical Debugging: Operations such as program loading, functional debugging, and communication adaptation are performed to verify core functions like programming, inspection, and sorting.
3. Burn-in Testing: Burn-in tests involving high/low temperatures and long-duration continuous operation simulate actual working conditions, enhancing the equipment's long-term operational reliability.
4. Final Inspection and Shipment: Comprehensive testing of appearance, performance, precision, and compatibility is conducted. Only equipment passing all tests is shipped to customers.

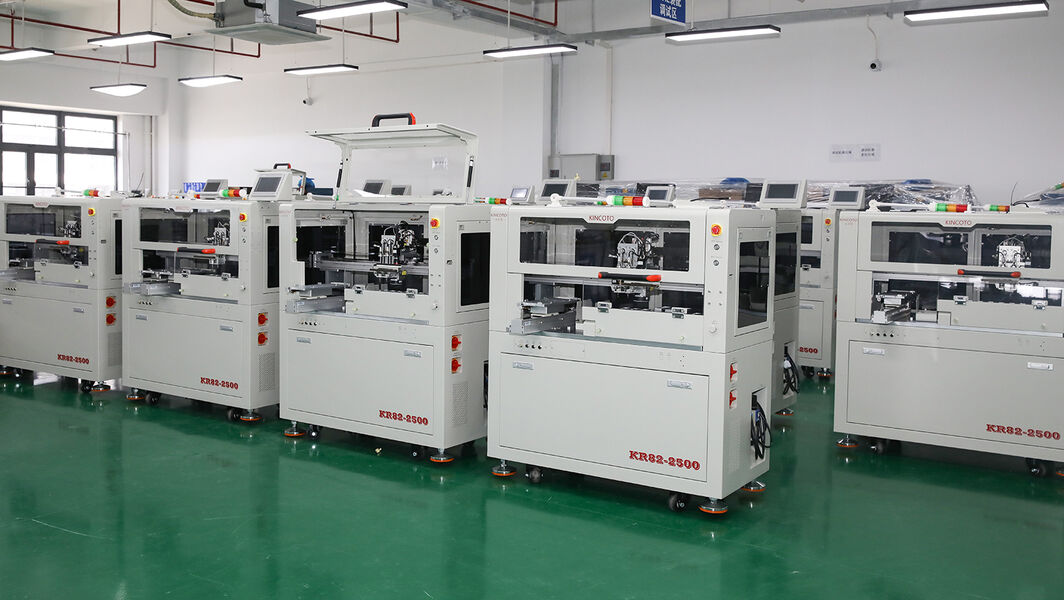

III. Automated Programming Production Line (Core IC Programming Service)
Leveraging self-developed and manufactured programming equipment, this automated programming line is established to deliver efficient and precise IC programming services, suitable for high-volume production across various scenarios.
1. Automatic Feeding: Supports various feeding methods including tape, tube, and tray. A vision positioning system ensures precise chip feeding with a positioning accuracy of ±0.02mm.
2. Intelligent Programming: Parallel operation across multiple stations supports mainstream communication protocols such as SPI, I2C, JTAG, and SWD. Processes including chip erasure, program writing, and data verification are automated to ensure a high programming success rate.
3. Functional Testing: Integrates In-Circuit Test (ICT) and Functional Circuit Test (FCT) functions to inspect chip voltage, communication, storage stability, etc., allowing for real-time rejection of defective units.
4. Traceability Marking: Laser marking applies identifiers such as chip serial numbers (SN), lot numbers, and production dates. Data is synchronized with the Manufacturing Execution System (MES) to enable full-process traceability.
5. Sorting and Packaging: Qualified chips are automatically packaged into tape and reel or trays. Defective chips are automatically isolated. Finished products are sealed and stored to meet customer delivery requirements for mass production.
IV. Core Advantages of the Production Line
1. Self-Sufficiency: In-house CNC machining of core components and whole-machine assembly ensure quality from the source, shorten delivery times, and reduce costs.
2. High Precision Assurance: CNC machining precision of ±0.005mm and programming positioning accuracy of ±0.02mm meet the demands of high-precision IC programming and industrial-grade equipment.
3. High Efficiency Automation: Features like unmanned material handling, parallel programming, and intelligent sorting achieve a throughput of 1,500–3,000 PCS per hour, suitable for high-volume production.
4. Full-Process Traceability: The MES system records all data related to materials, machining, assembly, and programming, meeting compliance requirements for automotive-grade, medical-grade, and other stringent standards.
5. High Adaptability and Customization: Programming equipment is compatible with multiple package types and chip brands. Production line customization is supported to adapt to programming needs across different industries.
V. Application Areas
Widely applied in the supply of programming equipment and batch IC programming services for consumer electronics, automotive electronics, IoT modules, industrial control chips, medical electronic components, and related fields.
Our company specializes in ODM R&D and manufacturing of programming equipment, with full-process capabilities ranging from solution design, structural development, electrical integration, and software customization to whole-machine production, providing customers with one-stop customized solutions for programming equipment.
Leveraging its in-house R&D platform and CNC precision machining line, we can offer services such as standardized model customization, function expansion, interface adaptation, MES integration, and automotive-grade upgrades based on customer requirements. We support multi-dimensional customization including brand labeling, appearance customization, structural optimization, and programming protocol expansion.
From single-site programmers to multi-site automated production lines, and from consumer electronics to automotive electronics, industrial control, medical electronics, and beyond, we leverage our mature technology platform, stable manufacturing system, and efficient delivery capabilities to provide customers with highly reliable, highly adaptable, and cost-effective ODM services, helping customers accelerate product launch and market expansion.
Our company places a strong emphasis on technological innovation and product R&D, and has established a dedicated R&D center focused on the independent development and iterative upgrade of core programming equipment technologies, automation solutions, and software systems.
The current R&D team consists of 15 members, characterized by a stable structure and balanced expertise, with 100% holding a bachelor's degree or higher:
• Bachelor’s degree: 12 members, specializing in programming protocols, structural design, electrical control development, automation integration, and other areas, with solid engineering practice capabilities.
• Master’s degree: 3 members, leading core algorithm optimization, automotive-grade solution development, MES system integration, and advanced technology research, ensuring the technological leadership and stability of the products.
The team covers the full spectrum of technical domains, including mechanical structure, electronics and electrical control, software programming, vision inspection, and automation control. This enables rapid response to customer customization needs, providing comprehensive technical support for ODM services—from solution design and prototype development to mass production implementation.
